FEATURES:

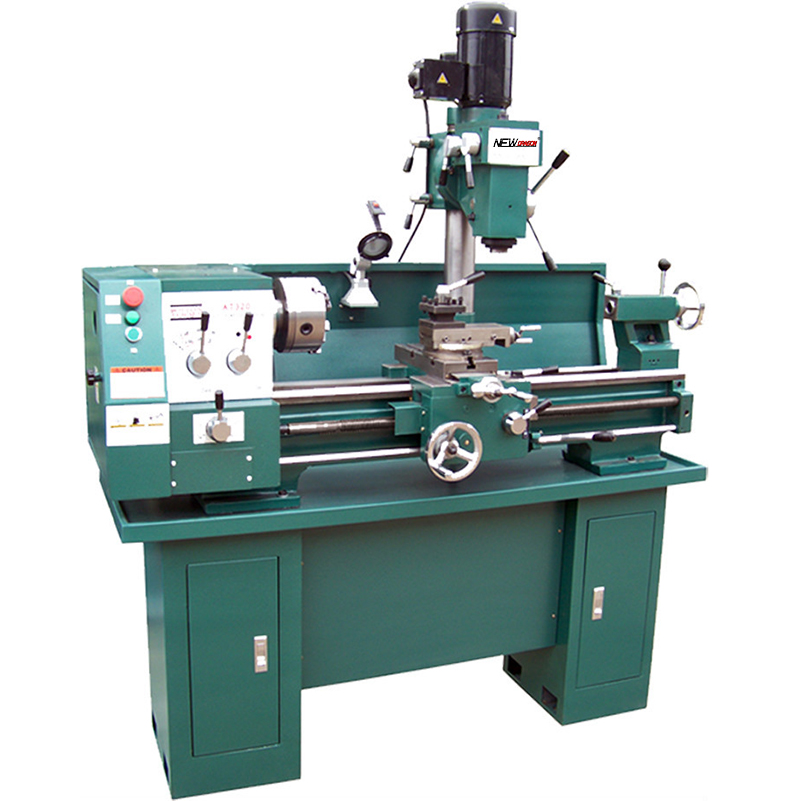

The machine is a combined multi-purpose machine,possessing the functions like cutting,drilling and milling,12-grade spindle gearshift for cutting,big spindle holes and big chuck.The machine can power feed crossly or longitudinally,power feed anti-direction without stopping cutting.
With the added control rod,it’s has 4 gearshift for drilling and milling.The drilling and milling head can work with angle changed.
SPECIFICATIONS:
|
Model
|
AT320
|
|
Max.swing diameter over bed
|
320mm
|
|
Max.length of work piece
|
750mm
|
|
Max.swing diameter over tool carrier
|
200mm
|
|
Spindle bore
|
38mm
|
|
Taper of hole in spindle morse
|
No.5
|
|
Max.cross stroke over tool carrier
|
200mm
|
|
Max.longitudinal stroke over small tool carrier
|
100mm
|
|
Metric thread kinds on processing
|
17
|
|
Metric thread pitch on processing
|
0.5-4mm
|
|
Inch thread kinds on processing
|
20
|
|
Inch thread pitch on processing
|
11-40 1/n"
|
|
Longitudinal feed on spindle tool carrier
|
0.01-1.5/r
|
|
Cross feed on spindle tool carrier
|
0.025-0.34/r
|
|
Max.stroke on taper hole
|
80mm
|
|
Taper of hole in tailstock
|
No.3
|
|
Spindle speed step
|
12
|
|
Spindle speed scope
|
60-1600r/min
|
|
Electric motor
|
1.1kw
|
|
Drilling&Milling
|
|
|
Max.drilling capacity
|
16mm
|
|
Swivel-angle of headstock around the column
|
360
|
|
Spindle speed step
|
4
|
|
Spindle speed scope
|
260-2620r/min
|
|
Taper of hole in spindle morse
|
No.3 or R8
|
|
Electric motor
|
0.37kw
|
|
Net weight
|
400kg
|
|
Overall dimension
|
1540*625*1750
|
