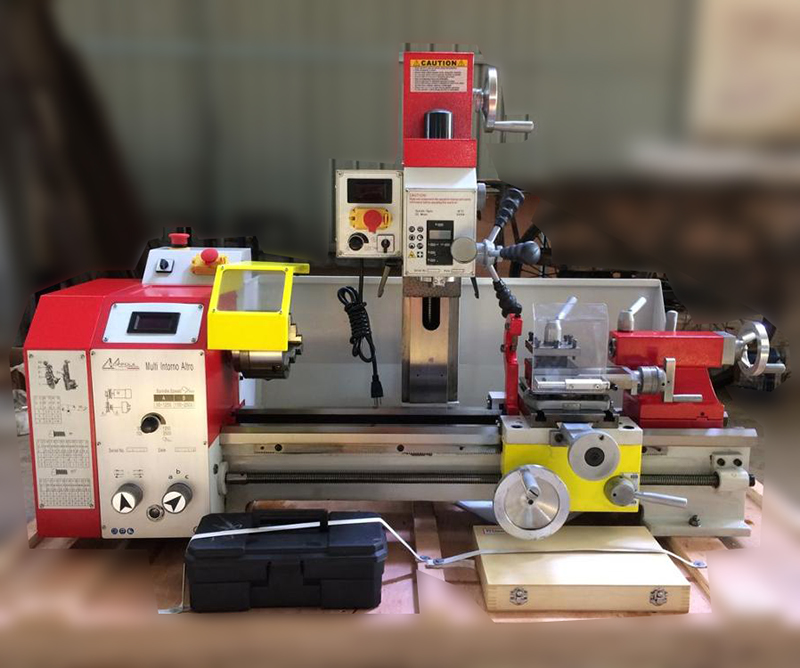

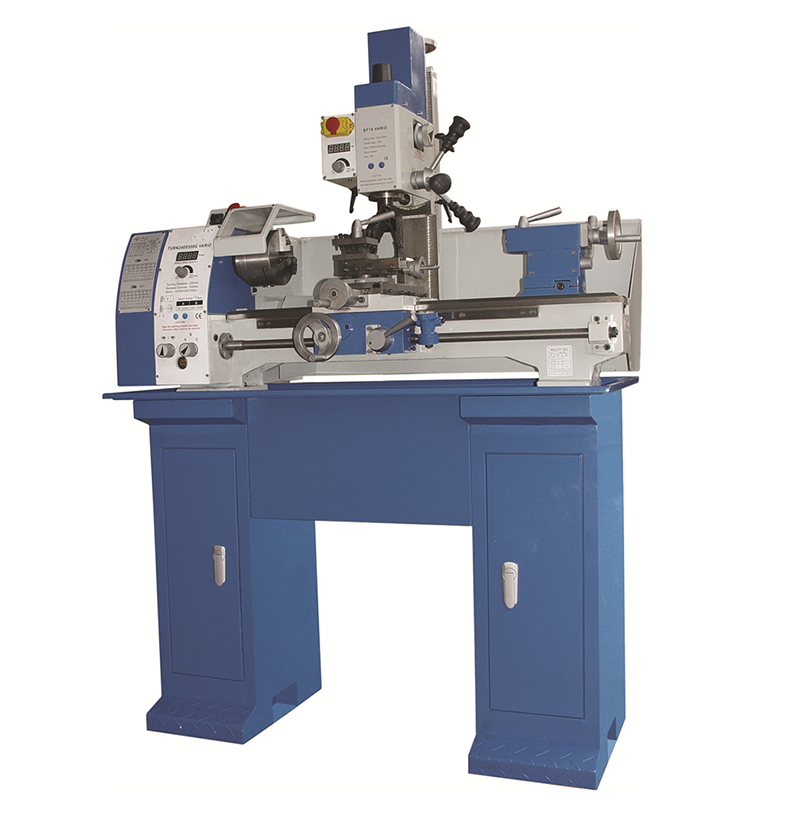

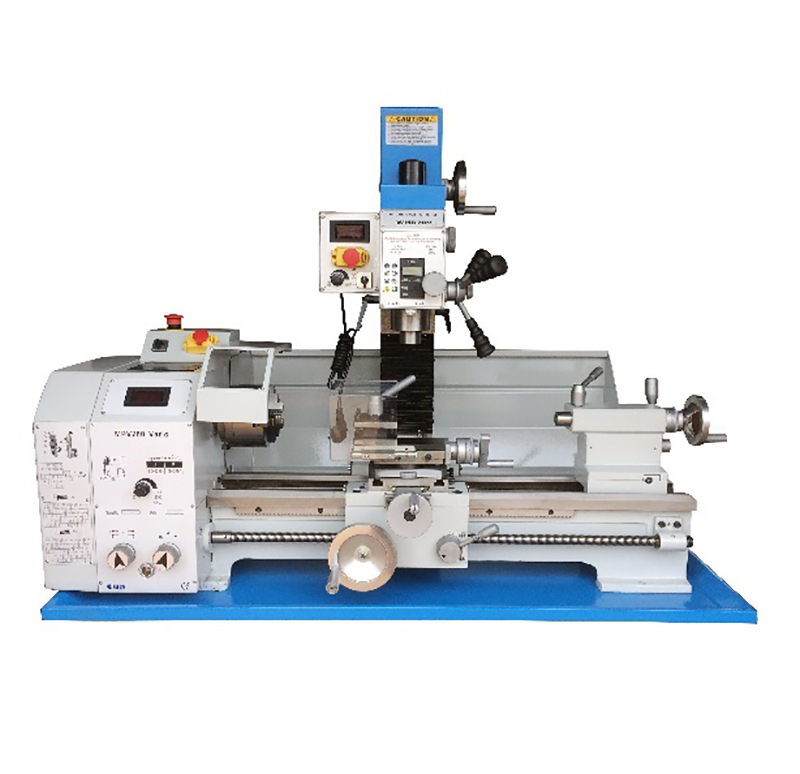

Combination lathe and milling machine variable speed TU280
Feature
Turning,Milling,Drilling and Threading
|
Specification
|
TU280
|
TU290
|
|
Distance between centers
|
700mm
|
700mm
|
|
Swing over bed
|
280mm
|
290mm
|
|
Swing over cross slide
|
170mm
|
165mm
|
|
Spindle taper
|
MT4
|
MT5
|
|
Width of bed
|
180mm
|
180mm
|
|
Spindle bore
|
26mm
|
38mm
|
|
Range of spindle speeds(variable speed)
|
50-2500rpm
|
80-2000rpm
|
|
Range of cross feed
|
0.07-0.40mm/r
|
0.01 -0.10mm /r
|
|
Range of longitudinal feed
|
0.085~0.832mm/rev
|
0.085-0.832mm/rev
|
|
Range of inch threads
|
8-56T.P.I
|
8-56T.P.I
|
|
Range of metric threads
|
0.2-3.5mm
|
0.2 -3.5mm
|
|
Top slide travel
|
65mm
|
70mm
|
|
Cross slide travel
|
180mm
|
160mm
|
|
Tailstock quill travel
|
75mm
|
70mm
|
|
Taper of tailstock quill
|
MT2
|
MT3
|
|
Main motor
|
1.1kw
|
1.5kw
|
|
Drilling and milling head
|
BF20
|
BF20
|
|
Spindle taper
|
MT2
|
MT3
|
|
Spindle travel
|
52mm
|
52mm
|
|
Range of spindle speeds(variable speed)
|
50-3000rpm
|
50-2250rpm
|
|
Max.distance from spindle nose to table
|
380mm
|
325mm
|
|
Max.distance from spindle to columm
|
185mm
|
185mm
|
|
Motor power
|
850w
|
600w
|
|
Packing size(for machine)
|
137x850x1050mm
|
1450 × 720 × 1050mm
|
|
Packing size(for stand)
|
800x580x415mm
|
800x580x415mm
|
|
N.W
|
248kgs
|
325kgs
|
STANDARD ACCESSORIES
