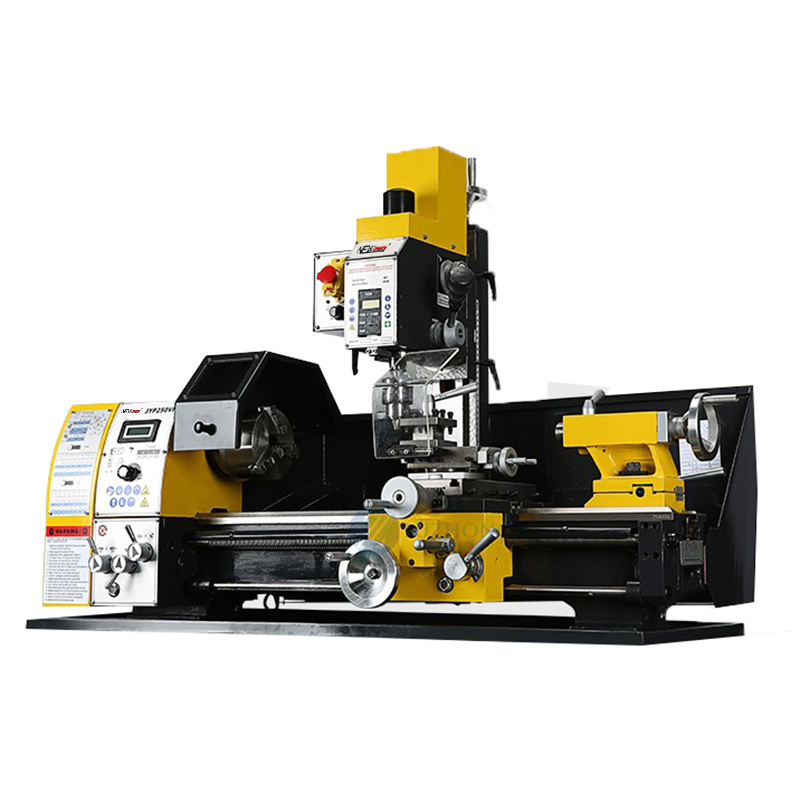

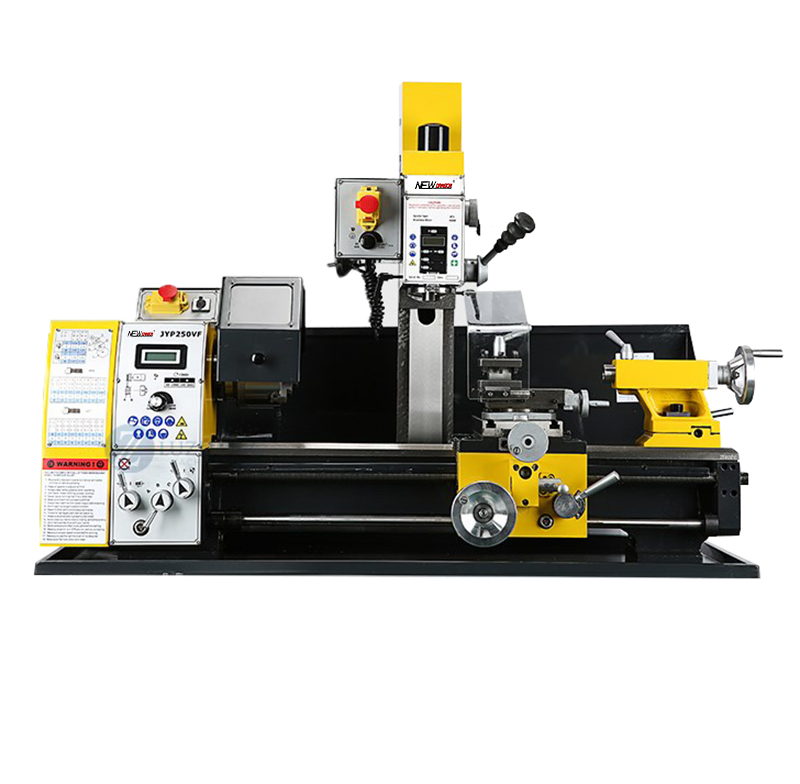

TU250VF Spindle Bore 26mm Manual Bench Metal Mini Lathe JYP250VF
|
Combination lathe milling and drilling machine
|
TU250VF
|
|
Distance between centers
|
550/750mm
|
|
Swing over bed
|
250mm
|
|
Swing over cross slide
|
145mm
|
|
Taper of spindle bore
|
MT4
|
|
Spindle bore
|
26mm
|
|
Number of spindle speeds
|
variable speed
|
|
Range of spindle speeds
|
50-2250rpm
|
|
Range of longitudinal feeds
|
0.08-0.48mm /r
|
|
Range of inch threads
|
8-56T.P.I
|
|
Range of metric threads
|
0.2 -3.5mm
|
|
Top slide travel
|
60mm
|
|
Cross slide travel
|
115mm
|
|
Tailstock quill travel
|
70mm
|
|
Taper of tailstock quill
|
MT2
|
|
Motor
|
750W
|
|
Packing size
|
1455*640*930mmmm
|
|
Net /Gross weight
|
210/240 kg
|
|
Milling head spindle taper
|
MT2
|
|
Drilling capacity
|
16mm
|
|
End milling capacity
|
16mm
|
|
Face milling capacity
|
52mm
|
|
Spindle travel
|
50mm
|
|
T-slot width
|
10mm
|
|
Spindle speed range
|
50-2250rpm
|
|
Motor power
|
500W
|
|
Voltage
|
as your requirements
|
|
N.W./G.W.
|
210/240 kgs
|
STANDARD ACCESSORIES
