Specifications
|
||
|
MODEL
|

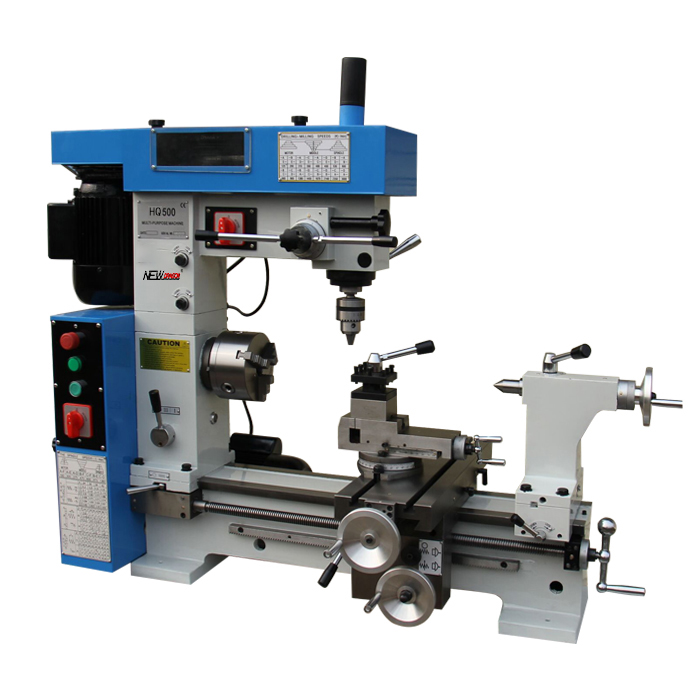

HQ500/ HQ800
|
|
|
TURNING
|
Swing over bed
|
420mm(16-5/9")
|
|
Distance between centers
|
500mm/ 800mm(20"/31-1/2")
|
|
|
Max. longitudinal travel
|
440mm/740mm(17-1/3"/29-1/8")
|
|
|
Max. cross travel
|
200mm(7-7/8")
|
|
|
Taper of spindle
|
MT4
|
|
|
Spindle hole
|
φ28mm(1-1/9")
|
|
|
Step of spindle speed
|
7 steps
|
|
|
Range of spindle speed
|
160-1360rpm
|
|
|
Barrel travel
|
70mm(2-3/4")
|
|
|
Taper of center
|
MT3
|
|
|
Metric thread range
|
0.2-6mm
|
|
|
Inch thread range
|
4-120T.P.I
|
|
|
Longitudinal range of automatic feeding
|
0.05-0.35mm/ 0.002-0.014"
|
|
|
Cross range of automatic feeding
|
0.05-0.35mm/0.002-0.014"
|
|
|
DRILLING & MILLING
|
Max. drilling capacity
|
φ22mm(7/8")
|
|
Worktable size (L×W)
|
475×160mm(18/1-2"×6-2/7)
|
|
|
Max. end mill
|
φ28mm(1-1/9")
|
|
|
Max. face mill
|
φ80mm(3-1/7")
|
|
|
Distance between spindle center and column
|
285mm(11-2/9")
|
|
|
Distance between spindle and worktable
|
306mm(12")
|
|
|
Headstock travel of up and down
|
110mm(4-1/3")
|
|
|
Spindle taper
|
MT3
|
|
|
Step of spindle speed
|
16steps
|
|
|
Range of spindle speed
|
120-3000r.p.m
|
|
|
Swivel degree of headstock
|
±360°
|
|
|
MOTOR
|
Motor power
|
0.75kw
|
|
SHIPMENT DATA
|
Packing size
|
1430/1130×580×1100mm
|
|
N. weight/G .weight
|
245kg/280kg
|
|
|
Loading amount
|
40pcs/20’container
|
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
