TL360D(CQ6236D) lathe machine with big spindle bore 38/51mm





Product Description

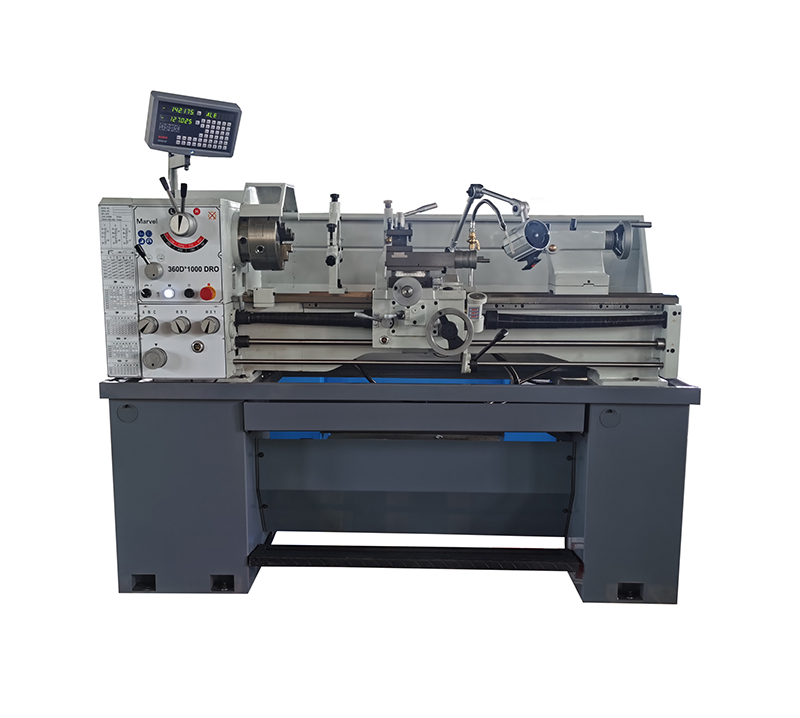

high precision gear lathe TL360D(CQ6236D)x1000mm

Feature



1.Varible speed as opthional.
2Precision ground and harded bed ways.

3.The spindle is supported with precision roller bearing.

4.Head stock gears are made of high quality steel ground and hardened.

5.Removable gap is provoded for larger diameter work.

6.Easy operating gear box has various feeds and thread cutting function.

7.Circular appearance as optional.

8.51mm big spindle bore as optional.



Technical Specifications

ITEMS

TL360D(CQ6236D)

Max swing over bed

356mm

Max swing over cross slide

212mm

Max swing over gap

506/550mm

Width of bed

187mm

Max. swing in gap

491mm

Max. length of workpiece

1000mm

Spindle bore 38mm/51mm
Spindle nose D1-4"/D1-5"

Range of spindle speeds

70-2000rpm or 90-2000rpm

Taper of spindle bore MT5/MT6
Center height 178mm
Threads metric pitches

0.1-7mm/44kinds

Threads imperil pitches

4-112TPI/56kinds

Threads diametral pitches

16-112DP/32kinds

Threads module pitches 0.1-1.75MP/34Kinds
Compound rest travel  90mm
Cross slide travel   170mm
Max.section of tool   16x16mm
Longitudinal feeds range

0.0464-3.249mm/rev (Metric lathe)

0.00168-0.11750in/rev(inch lathe)

Cross feeds range

0.01-0.7033mm/rev(Metric lathe)

0.00046-0.03231in/rev(inch lathe)

External diameter  32mm
Max.travel  100mm
Taper of bore  MT3
Main motor power  1.5KW
Coolant pump power  40W
Packing size  1950X750X1500mm
N.W./G.W. 600/700kgs





 Standard accessories

38mm spindle bore

Separated sheet iron feet

3-jaw self-centering chuck

4-jaw independent chuck

Face plate

Steady rest

Follow rest

Working light

Coolant system

Foot brake

Dead center

Thread chasing dial

Full-length splash guard

Chip tray

Tool box and tools

Optional accessories

51mm bigger spindle bore

Living center

Taper turning attachment

Drill chuck

Chuck guard

Lead screw guard

Tool post guard

Digital read out display

Quick change tool post

Limit stop block

Separated cast iron feet
