CQ6230

FEATURS:

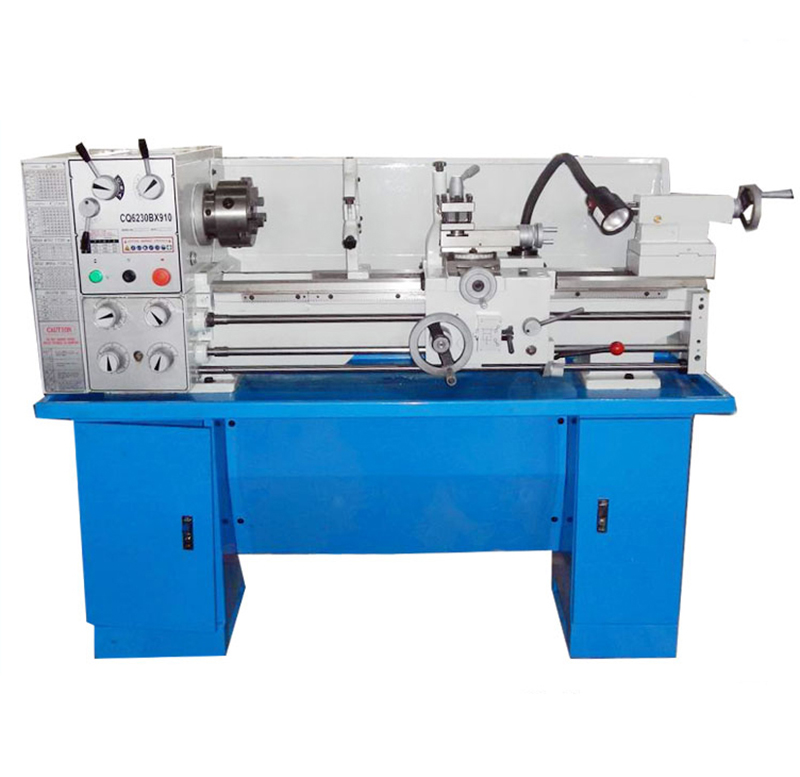

CQ6230 horizontal metal precision manual bench lathe machine with CE
Bench lathe machine CQ6230
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.



Model

CQ6230

Max. swing over bed

310mm

Max.swing over cross slide

180mm

Max. swing over gap

450mm

Distance between centers

750/910/1000mm

Width of bed

181mm

Spindle bore

38mm

Taper of spindle bore

MT5

Range of spindle speeds

65-1810(1400)rpm

Taper of tailstock

MT3

Range of metric threads

0.4-7mm

Range of inch threads

4-60TPI

Metric threads can be cut

0.527-1.2912mm/rev

Inch threads can be cut

0.011-0.276mm/rev

Range of longitudinal feeds

130mm

Range of cross feeds

75mm

Max. travel of cross slide

100mm

Max.travel of top slide

1.5KW

N.W.

500/540/640kg

G.W.

550/590/670kg

Packing size

1480/1680/1970x750x1400mm



Standard accessories:

3-jaw chuck,

change gears,

dead center

oil gun

splash guard

foot stand

oil tray



optional accessories

4-jaw chuck

face plate

steady and follow rest

working lamp

foot brake

lamp

rolling center

drill chuck with arbor

leadscrew guard

chuck guard

localizer

clutch for feed rod

quck change tool post

DRO 2 axis

DRO 3 axis
