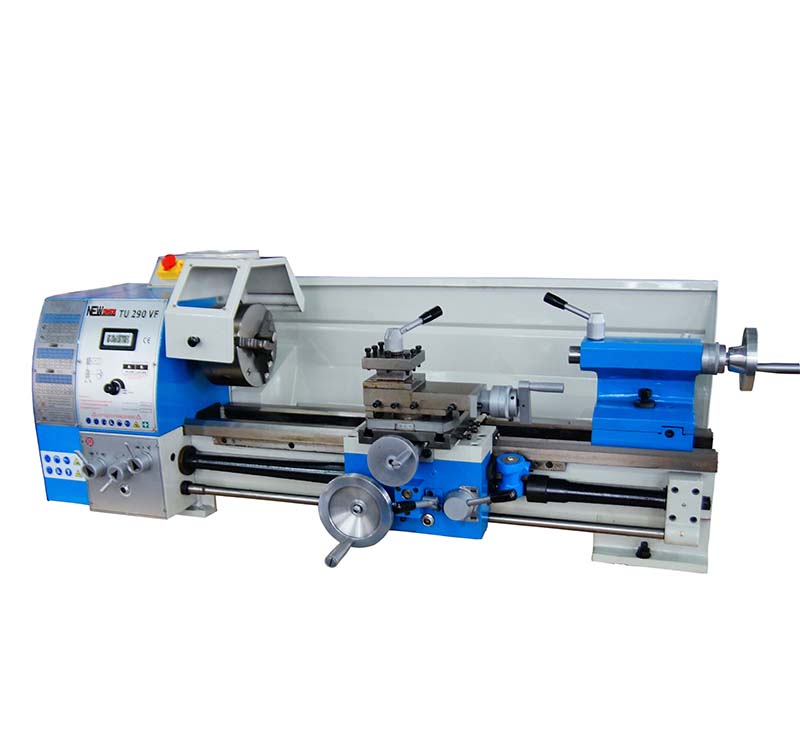

New metal horizontal bench lathe with double rods lathe
1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm
3.Chuck runout accuracy of less than 0.05mm .
4.Strong power, maintenance-free DC motor .
5.After quenching and precision grinding of cast iron bed .
6.High precision, quenching spindle .
TECHNICAL SPECIFICATIONS
|
Height of centers |
145mm |
|
Max.Swing over bed |
290mm |
|
Max.distance between two centers |
700mm |
|
Taper of spindle hole |
MT4 |
|
Number of steps of spindle speeds |
variable speed |
|
Range of spindle speeds |
125-2000/50-2000rpm |
|
Metric thread cutting |
0.25-3.5mm |
|
Range of longitudinal feeds |
0.07-0.40mm/rev |
|
Taper of taistock sleeve |
MT2 |
|
Motor |
1.1KW |
|
Overall dimension |
1400X700*630mm |
|
Net weight |
240kg |
STANDARD ACCESSORIES
|
NAME |
QTY |
|
Dead Centers |
2pcs |
|
Change Gears |
1pcs |
|
Toolbox & tools |
1pcs |
OPTIONAL ACCESSORIES
|
NAME |
QTY |
|
Four Jaw Chuck |
1pcs |
|
Follow Rest |
1pcs |
|
Steady Rest |
1pcs |
|
Face Plate |
1pcs |
|
Rolling Center |
1pcs |
|
Stand |
1pcs |
|
Truning Tools |
1pcs |
|
Splash Guard |
1pcs |
|
Chip Tray |
1pcs |
