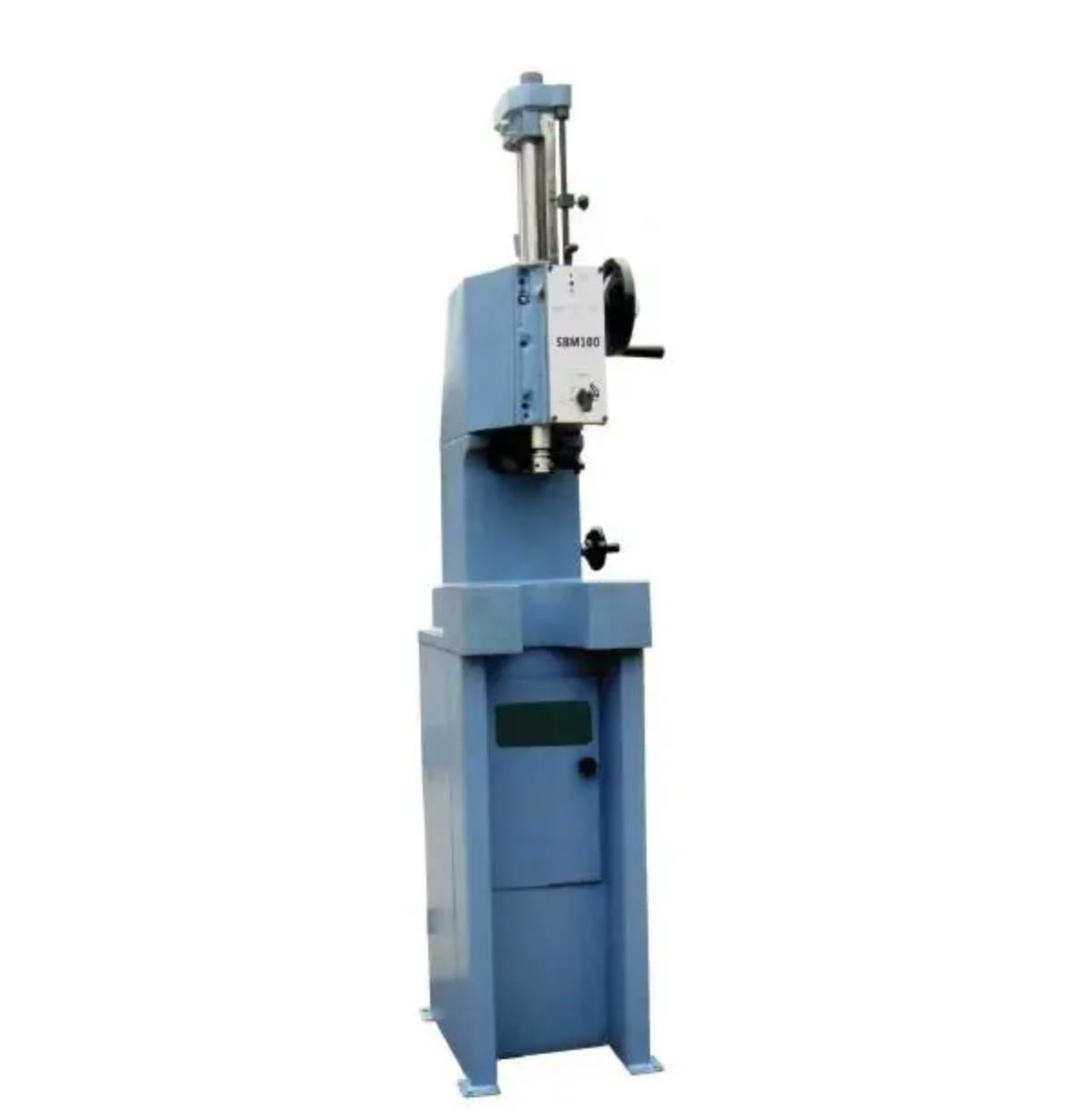

Boring Machine for Motorcycle Cylinder SBM100
Application and features:
*The boring machine is used for reboring engine cylinders of automobiles motorcycles and middle & small tractors
*Reliable performance ,widely use, processing accuracy high productivity
*Easy operation, high efficicency
*Good rigidity, amount of cutting
Main specifications
|
No. |
Items |
Unit |
Parameters |
|
|
1 |
Boring diameter |
mm |
36 ~ 100 |
|
|
2 |
Max. boring depth |
mm |
210 |
|
|
3 |
Spindle speed series |
steps |
2 |
|
|
4 |
Spindle return mode |
|
Manual |
|
|
5 |
Spindle feed |
mm/rev |
0.076 |
|
|
6 |
Spindle speed |
rpm |
200,400 (Three-phase motor) |
223,3 12 (Single phase motor) |
|
7 |
Main motor power |
kW |
0.37 / 0.25 |
0.25 |
|
|
Voltage |
V |
3-220,3-380 |
1-220 |
|
|
Speed |
rpm |
1440 ,2880 |
1440 |
|
|
Frequency |
Hz |
60,50 |
50,60 |
|
8 |
Main unit weight |
kg |
122 |
|
|
9 |
External dimensions(L * W * H) |
mm |
720 * 390 * 1700 |
|
