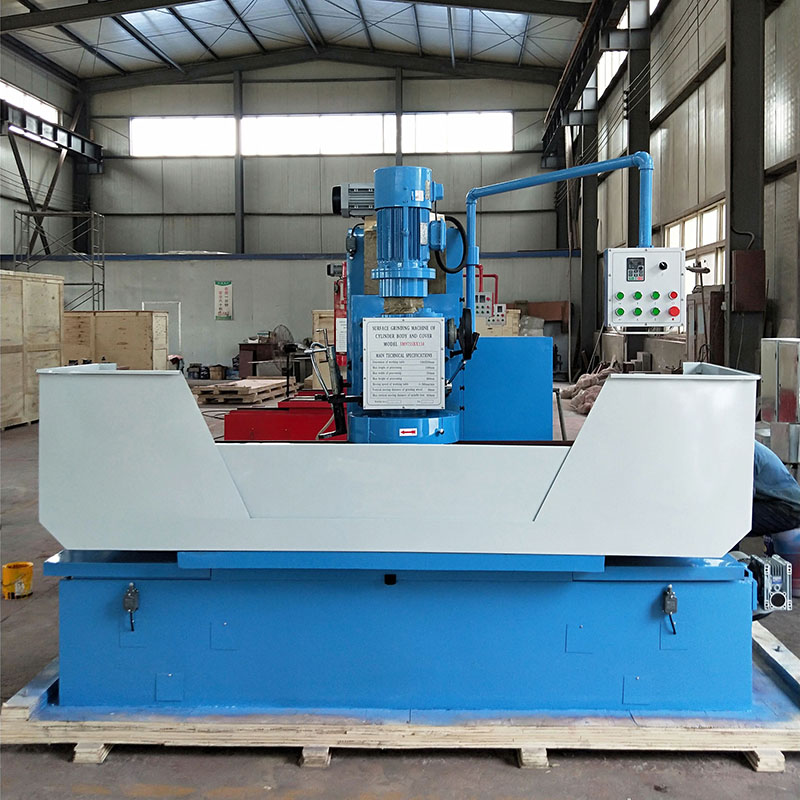

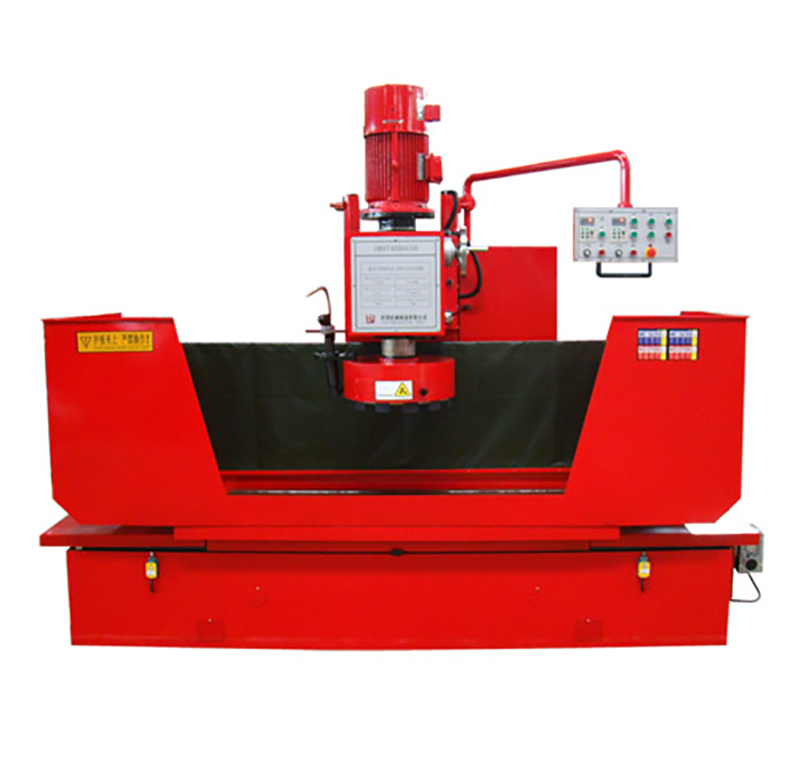

Motor- Engine rebuilding,Cylinder Block Surface Grinding & Milling Machine 3M9735B/3M9740B
Feasures:
1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw , stepless speed frequency control, convenient and stable adjustment.
3. coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.
5. The main spindle use inverter motor,stepless speed control.
|
MODEL |
3M9735Bx130 |
3M9735Bx150 |
3M9740Bx130 |
3M9740Bx150 |
|
Workbench dimension |
1300X500mm |
1500X500mm |
1300X500mm |
1500X500mm |
|
Max working length |
1300mm |
1500mm |
1300mm |
1500mm |
|
Max working width |
350mm |
400mm |
||
|
Max working height |
600mm |
800mm |
600mm |
800mm |
|
Workbench moving speed |
0-300r/min |
|||
|
spindle box travel |
800mm |
800mm |
||
|
number of segments |
10piece |
12piece |
||
|
Emery wheel disk diameter |
350mm |
400mm |
||
|
The speed of revolution of main motor |
1400/700r/min |
150-1400r/min |
||
|
N.W/G.W |
2.5T/2.8T |
2.5T/3.0T |
2.8T/3.1T |
2.8T/3.1T |
|
Outline dimension |
3100X1150 X2150mm |
3100X1150 X2150mm |
3100X1150 X2150mm |
3100X1150 X2150mm |
