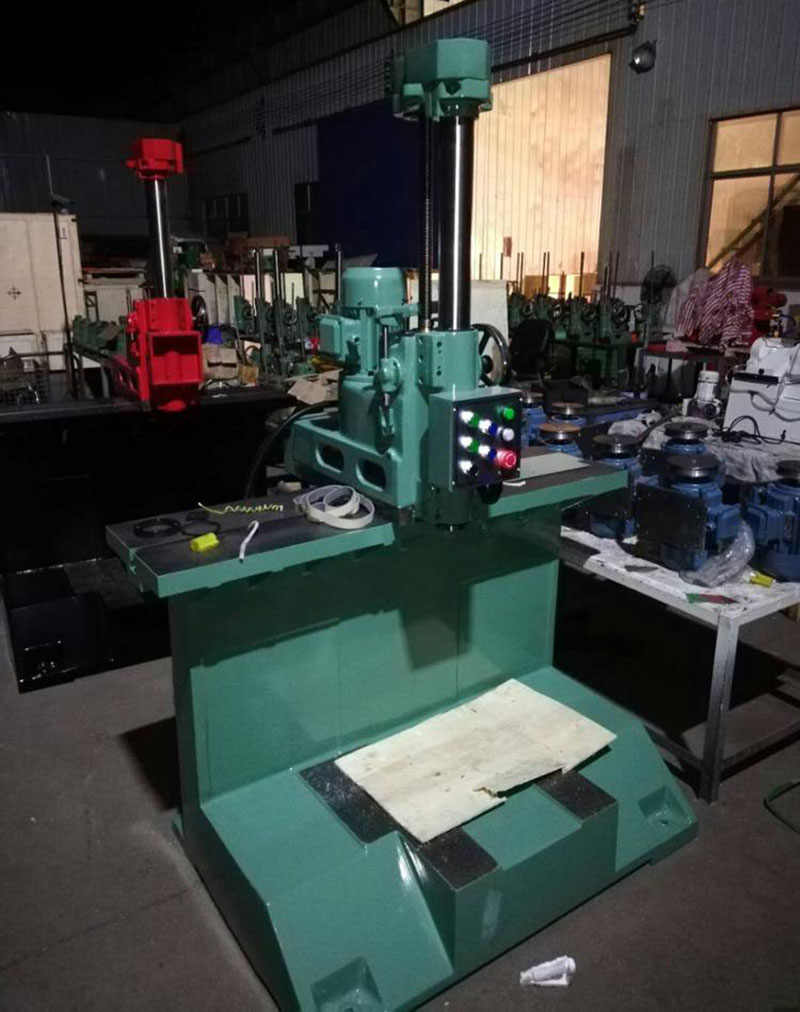

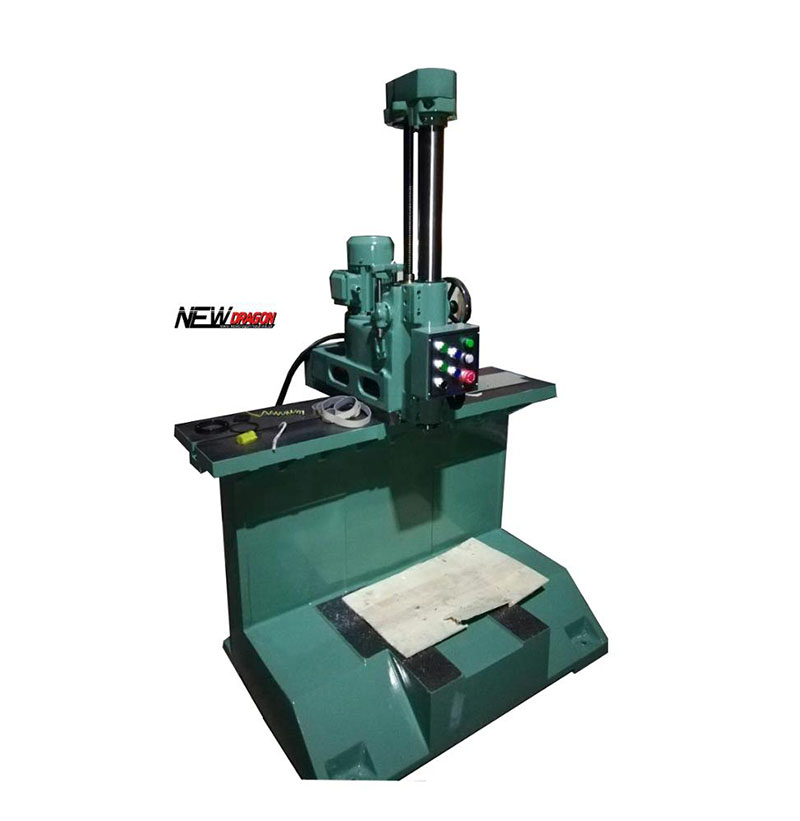

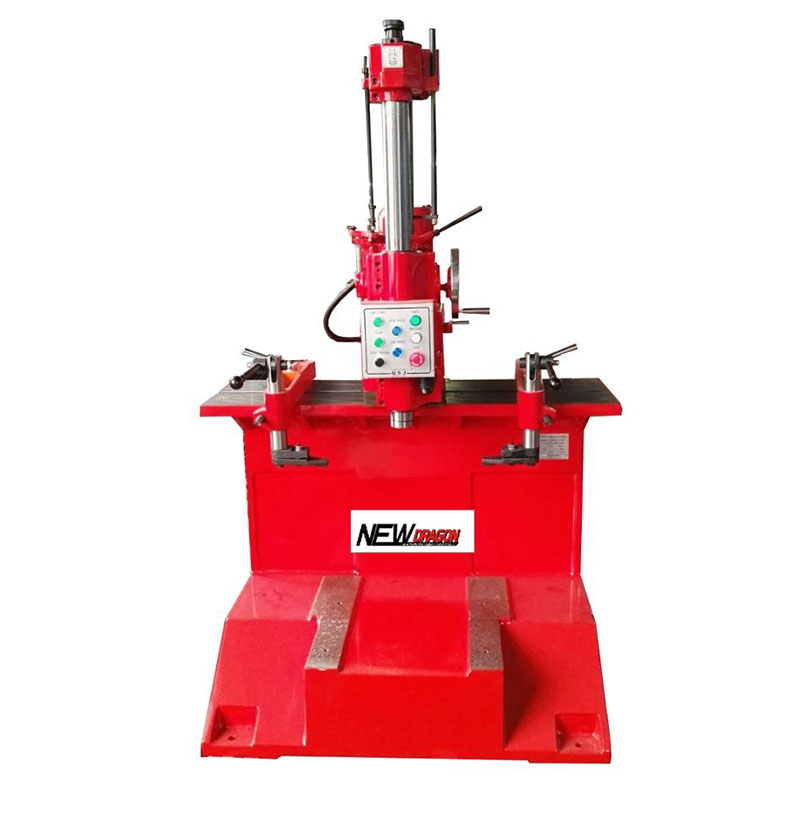

TB8016 Vertical air-floating fine boring machine
Application and Features
The machine is mainly for used for reboring single line cylinder and V type engine cylinders of automobiles motor cycles
and tractors and also for other machine element holes.
| NO. | ITEM | TECHNICAL SPECIFICATION |
| 1 | Boring diameter | 39-160mm |
| 2 | Max.boring depth | 320mm |
| 3 | Boring head travel Longitudinal | 1000mm |
| Cross | 45mm | |
| 4 | Spindle speed(4steps) | 125, 185, 250, 370 r/min |
| 5 | Spindle feed | 0.09 mm/r |
| 6 | Spindle quick reset | 430, 640 mm/min |
| 7 | Pneumatic pressure | 0.6≤P≥1 Mpa |
| 8 | Motor power | 0.85/1.1KW |
| 9 | Overall dimension | 1250*1050*1970mm |
| 10 | Machine weight | 1300Kg |
| 11 | V-block fixture patened system | 30 angle dreee, 45,angle degree |
| 12 | V-block fixture weight | 130Kg |
Reliable performance, widely use, processing accuracy, high productivity.
Easy and flexible opreation
Air-floating location quick and precise, automatic pressure.
Spinle speed is suitability.
The tool setting and measuring device.
There is vertical measuring device.
Good rigidity, amount of cutting.
