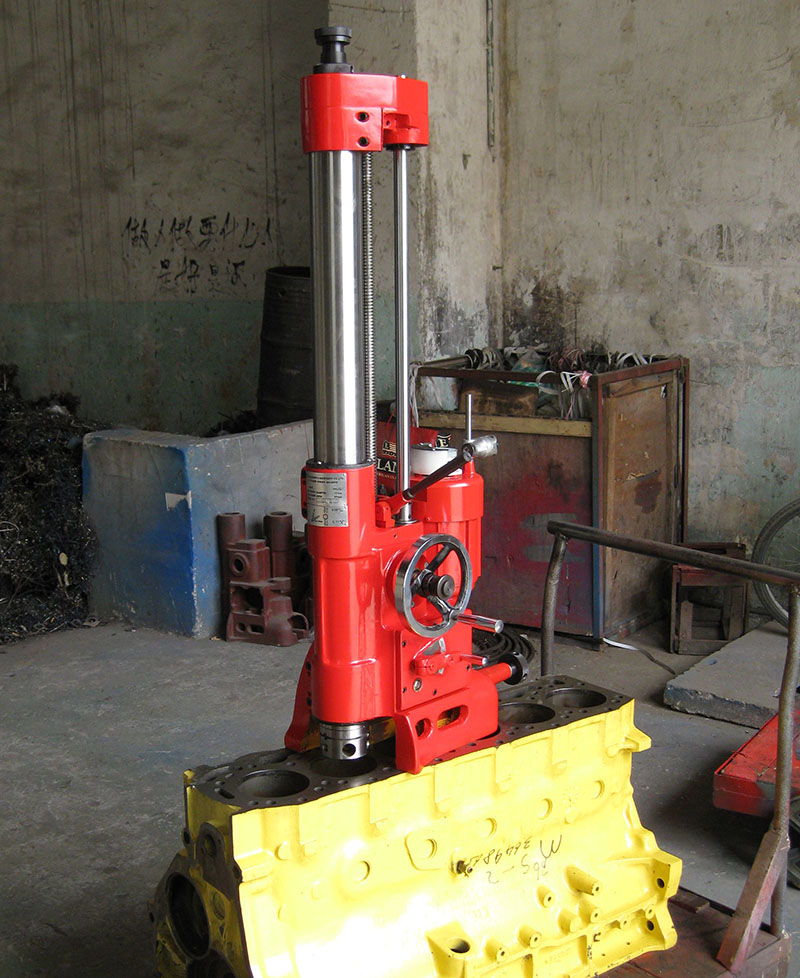

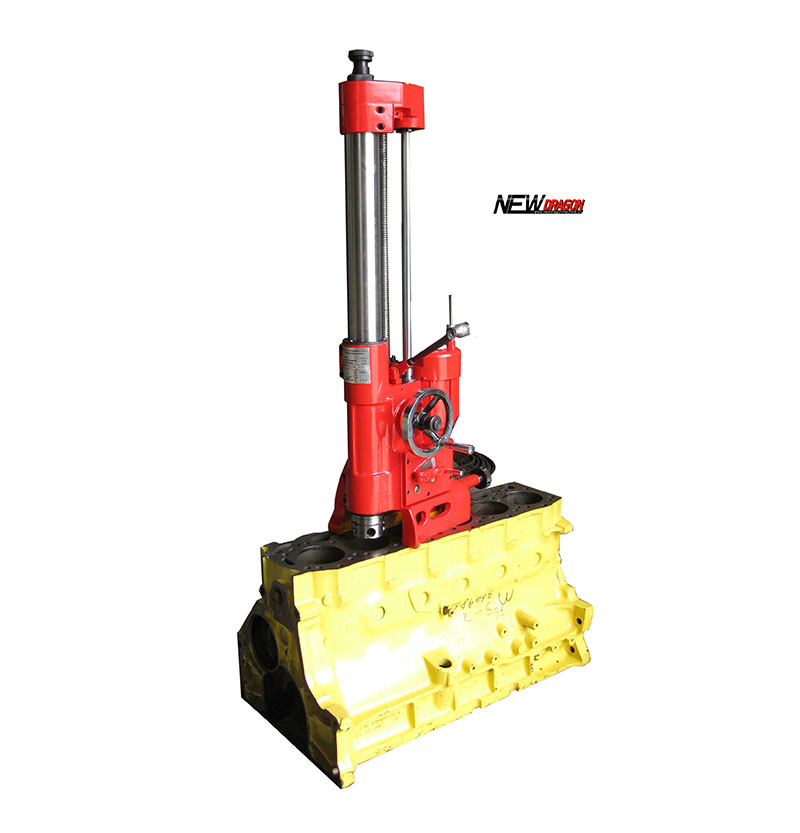

T8014A/T8016A cylinder boring machine

Application and features

The machine is mainly used for reboring engine cylinders of automboiles motor cycles and tractors.

1. reliable performance , widely use, processing accuracy high productivity

2. easy and flexible operation

3. good rigidity , amount of cutting .

Specifications:

Boring diameter :            65-140mm

Max.boring depth:           300mm

spindle speed :               250 rpm, 380 rpm

spindle feed :                  0.11mm/min

voltage :                          220V/380V

Main motor power :         0.25/0.37kw

motor speed:                   1440rpm

machine weight :             62kg

dimension :                     320x330x850mm
