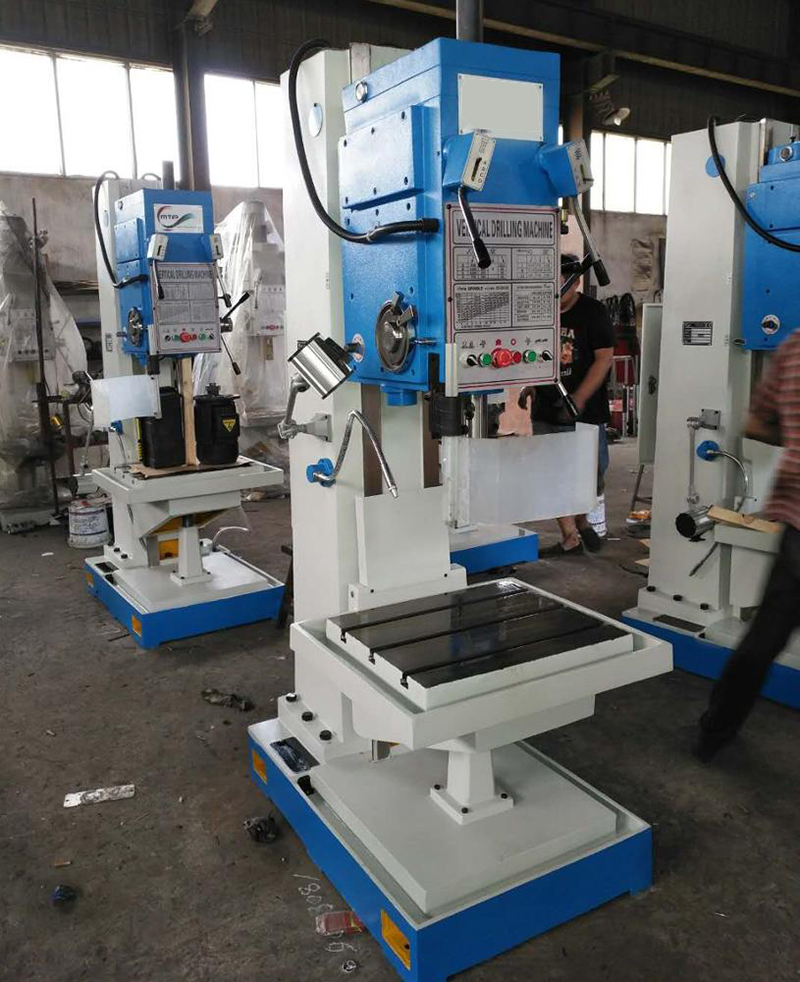

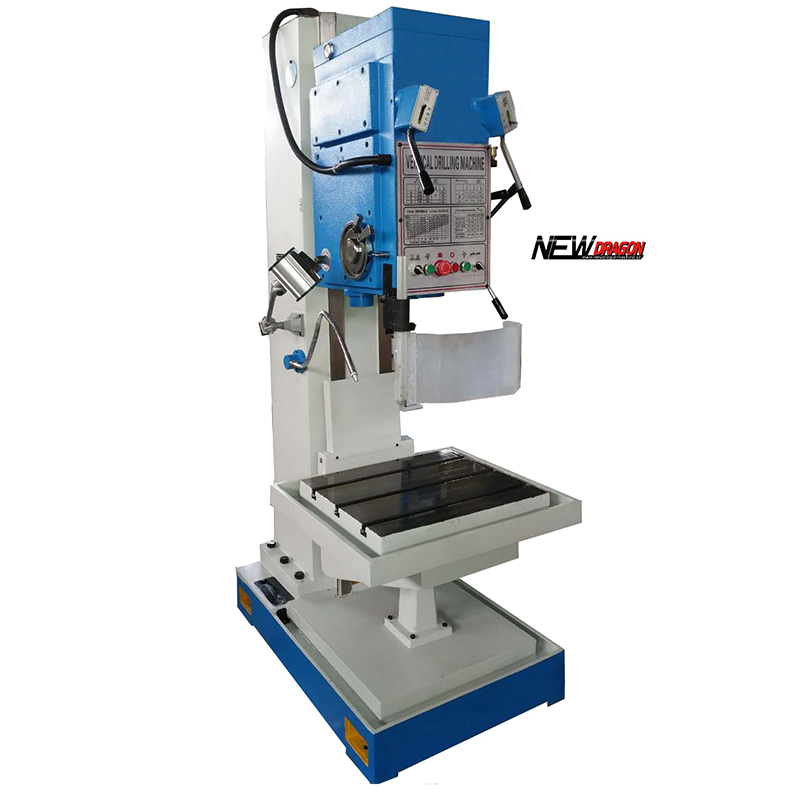

VETICAL DRILLING MACHINE Z5140B/Z5150 B
Features:
Square-column vertical drilling machine is a universal general purpose machine, it is used for
counter-sinking, spot-facing drilling , tapping , boring , reaming etc.
|
Specifications: |
Z5140B/Z5150B |
|
Max. drilling capacity : |
40/50mm |
|
Max. tapping capacity : |
40/46mm |
|
Max.feed resistance : |
6000N. |
|
Taper of spindle : |
MT4/MT5 |
|
Spindle travel : |
250mm |
|
headstock travel : |
200mm |
|
Spindle speed : |
31.5-1400rpm , 12steps |
|
Max.distance between spindle ant table surface |
550/750mm |
|
Table size : |
560x480mm |
|
Table travel(vertical) : |
300mm |
|
Power of motor : |
3KW |
|
Dimension : |
1300X1200X2465mm |
|
Weight : |
1250KG |
