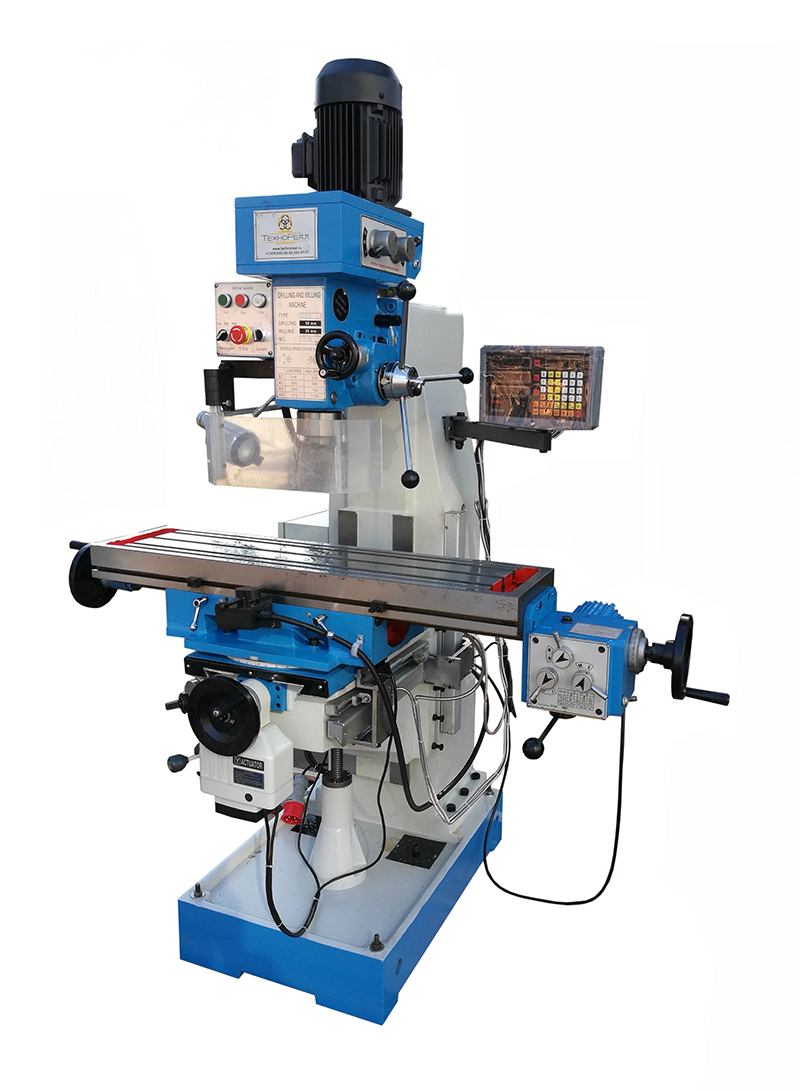

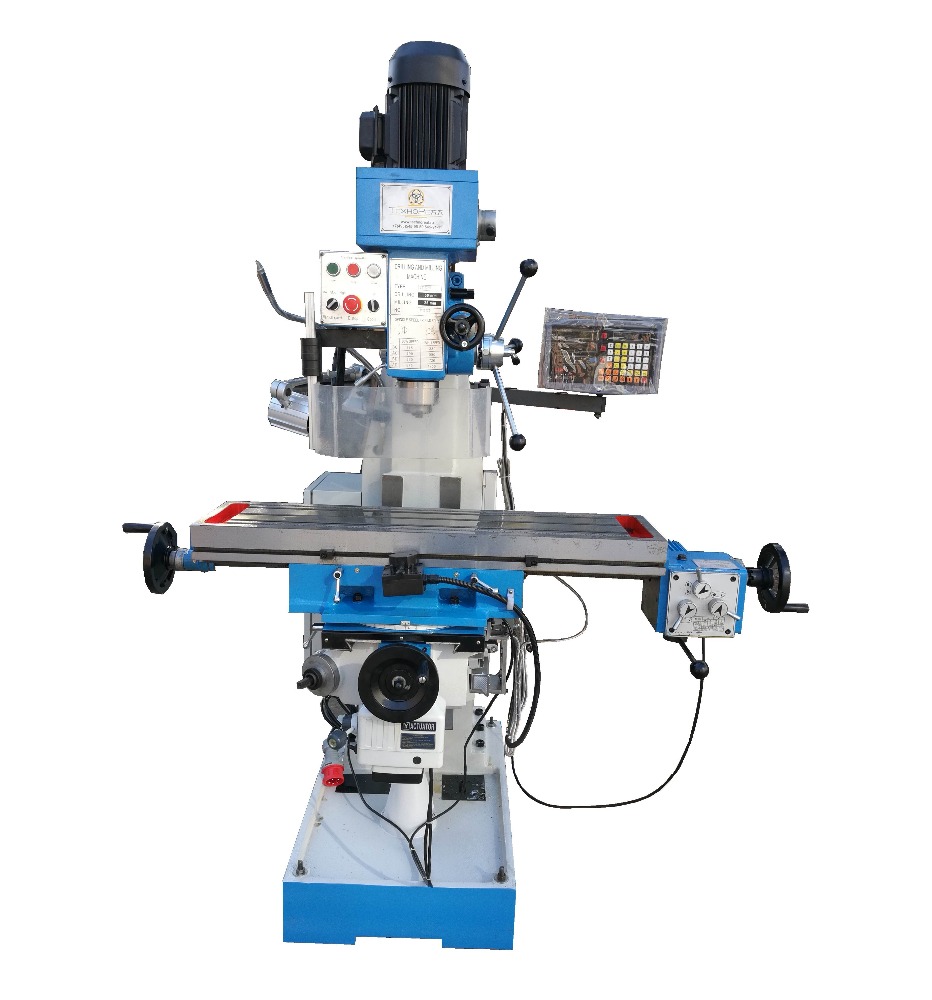

DRILLING AND MILLING MACHINE ZX5325C
Features:
Drilling 50mm
face milling 100mm
boring 100mm
tapping M16mm
| Specifications | ZX5325C |
| drilling capacity | 50mm |
| face milling capacity | 100mm |
| end milling capacity | 32mm |
| boring dia. | 100mm |
| Spindle taper | MT4,R8 |
| tapping dia. | M16 |
| spindle speed range | 115-1750rpm |
| spindle travel | 125mm |
| table size | 260X1000mm |
| table travel | 450x280x380mm |
| power | 0.85/1.5KW |
| G.W./N.W | 700/760kg |
| packing size |
1250x1120x2100mm |
