RUSHLES DC MOTORS BELT-DRIVEN MILLING MACHINE TM30BL
New type upgrated version
Brushless motor
high quality PC board
greater durability
higher efficiency
Maintenace-free
Noise-free
Technical data
|
Model No |
TM30BL |
|
Drilling capacity |
30mm |
|
Face milling capacity |
80mm |
|
End milling capacity |
25mm |
|
Spindle taper |
MT3 or R8 |
|
Sleeve travel |
70mm |
|
Spindle speed |
50-2250rpm |
|
Head rotation |
±45° |
|
Table size |
840×210mm |
|
X-axis travel |
565mm |
|
Y-axis travel |
220mm |
|
Z-axis travel |
360mm |
|
T-slot |
14mm |
|
Motor Brushless |
1100w |
|
Packing size |
710×890×1150mm |
|
Weight(n.e/g.w) |
250/290kg |
Standard accessories
Speed display
Depth ruler
Drill chuck 3-16mm
Arbor
Operating tools
Optional accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
End mill 7pcs (4-16mm)
58pcs of clamping kits
X-axis power feed
Digital readout

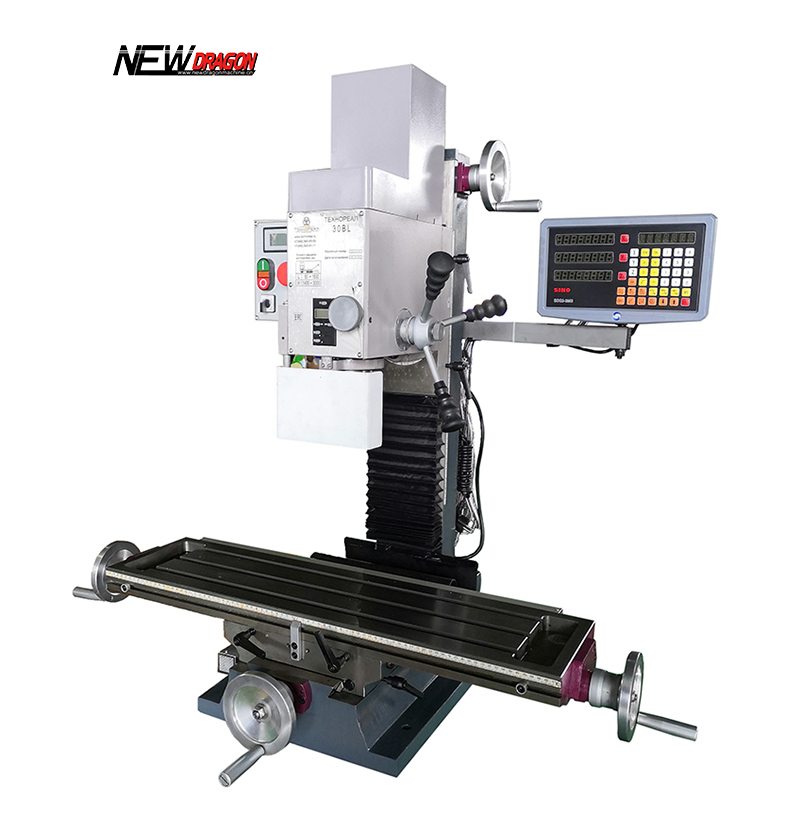

Product image
