Drilling capacity

13mm

Max.end mill capacity

16mm

Max.face mill capacity

30mm

Headstock travel(Z)

180mm

Cross axis(X)

100mm

Longitudinal axis(Y)

220mm

Throat

170mm

Max.distance spindle to table

280mm

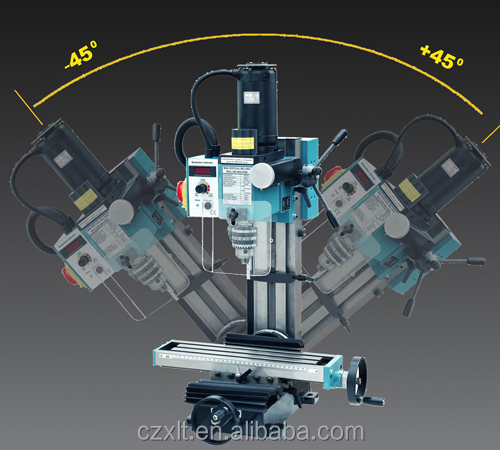

Head tilt

45°L,  45°R

Spindle taper

MT3 or R8

Motor output power

350W

Spindle speed   Low range /High range

100-1100RPM±10%/ 100-2500RPM±10%

Table effective size

390×92mm

T-slot size

12mm

Net weight/Gross weight

50kg/68kg

Packing size

520×520×730m
