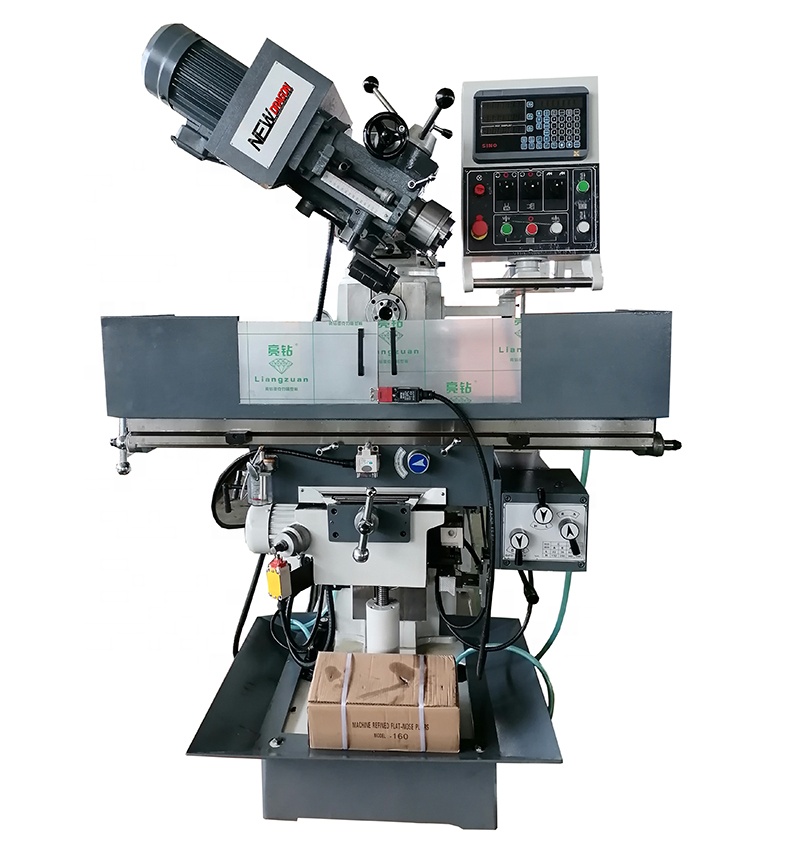

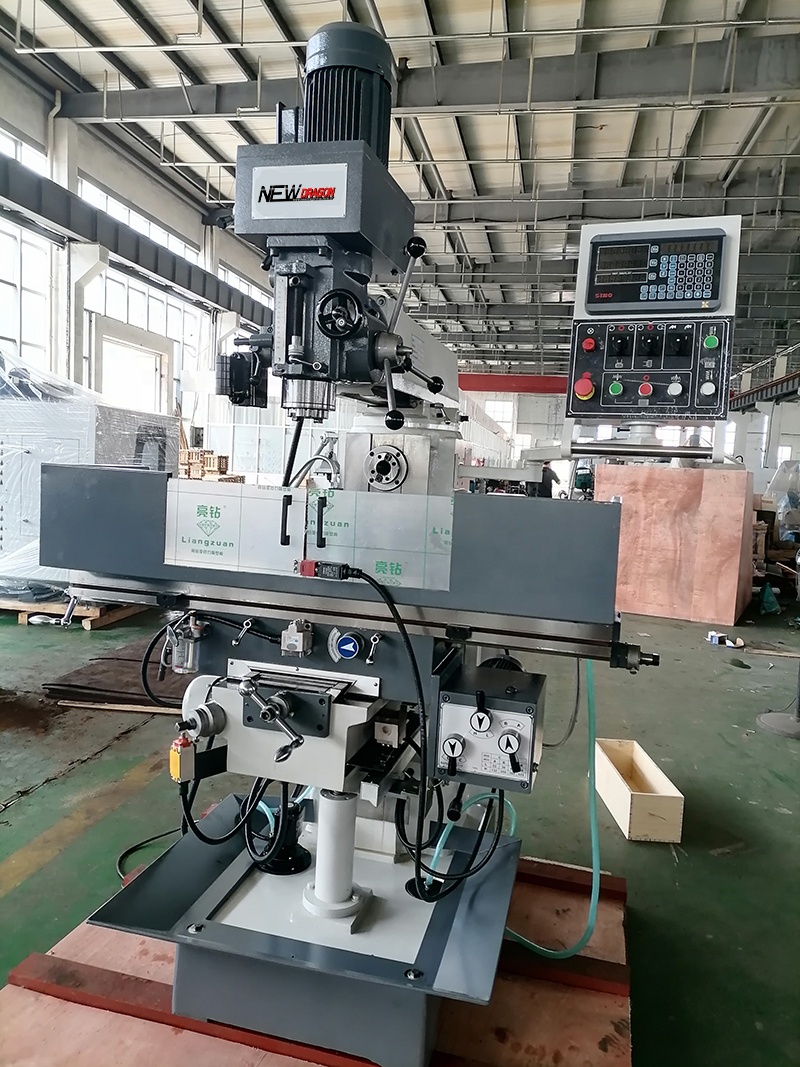

XZ6350ZB

Spindle taper

        ISO40(V)     ISO40(H)

Max.drilling diameter

            50mm. 30mm

Distance from spindle to table

             100-500mm

Distance from horizontal spindle to table

             0-380mm

Distance from spindle to column

            260-740mm

Spindle speeds

 (8)90-2000r.p.m(V)(12)40-1300r.p.m(H)

Spindle travel

             120mm

Feeding of quill

     (3steps)0.04  0.08  0.15

Max drilling capacity of auto-feeding

             14mm

Head movement(left/right)

             90degrees

Table size

            1270x280

Table travel(horizontal/cross/vertical)

          750x320x400mm

Feeding range of longitudinal cross travel

          (8)24-402mm/min

Z-axis rapid feed speed

             460mm/min

Z-axis motor power

                750w

Max weight of workpiece

               350kg

T-slot number /width/distance

            5/14/50mm

Horse power for main motor

            2.2KW/2.2KW

X.Y axis driving motor

              750W

Overall dimension

           1700x1600x2300mm

N.W./G.W.

             1550/1650kg
