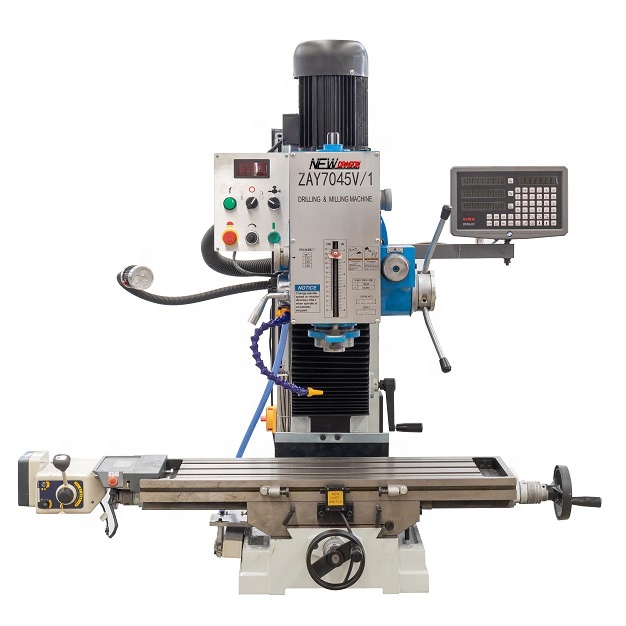

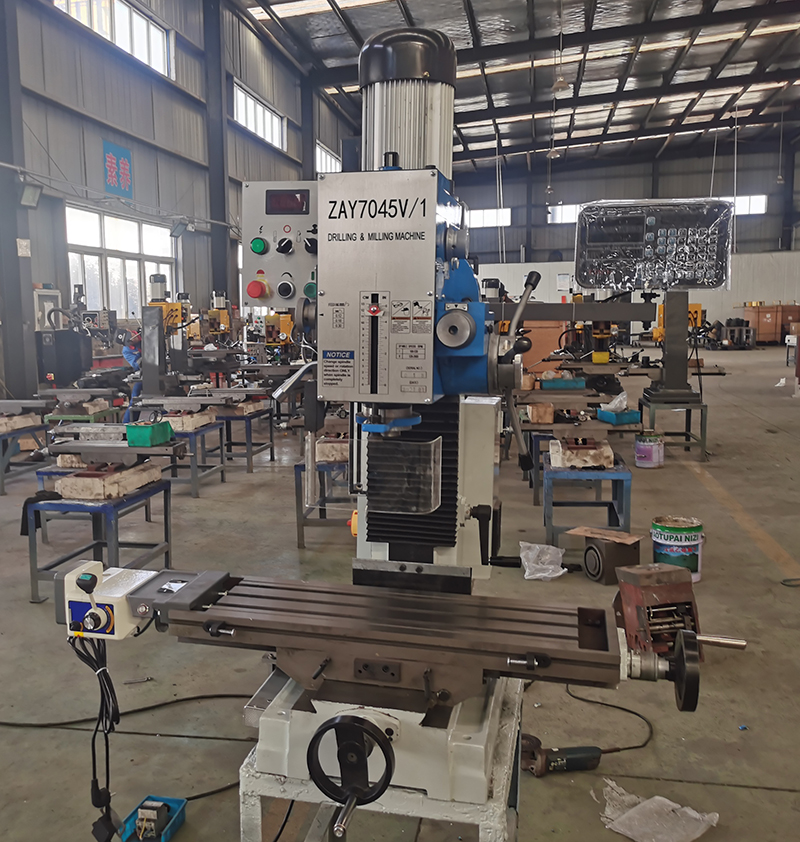

variable speed manual milling machine with auto-feeding ZAY7032V/1,ZAY40V/1,ZAY45V/1
Feature
1. Variable speed;
|
Specification
|
ZAY7032V/1
|
ZAY7040V/1
|
ZAY7045V/1
|
|
Max.Drilling capacity
|
32mm
|
40mm
|
45mm
|
|
Max. face mill capacity
|
63mm
|
63mm
|
80mm
|
|
Max. end mill capacity
|
20mm
|
20mm
|
32mm
|
|
Distance from spindle nose to table
|
450mm
|
||
|
Min. distance from spindle axis to column
|
260mm
|
||
|
Spindle travel
|
130mm
|
||
|
Spindle taper
|
MT3 ,MT4 or R8
|
||
|
Range of spindle speed(2 steps)
|
100-530, 530-2800rpm
|
||
|
Auto-feeding steps of spindle
|
6 steps
|
||
|
Auto-feeding amount of spindle
|
0.06-0.30mm/r
|
||
|
Swivel angle of headstock(perpendicular)
|
±90°
|
||
|
Table size
|
800×240mm
|
||
|
Forward and backward travel of table
|
175mm
|
||
|
Left and right travel of table
|
500mm
|
||
|
Motor power(DC)
|
1.1kw/1.1kw/1.5kw
|
||
|
N.W/G.W
|
310/360kgs
|
||
|
Packing size(L*W*H)
|
770×880×1160mm
|
||
|
Loading amount/20" container
|
36pcs
|
||
Standard accessories
1.Draw bar ,2.wedge, 3.allen wrenches, 4.screw driver 5.drill chuck and arbor
Optional accessories
|
Machine vice 125mm, |
depth scale |
|
mill chuck set |
coolant system |
|
58pcs clamping kits |
working lamp |
|
stand |
oil tray, |
|
boring bar |
milling cutter holder with inserts |
|
electric table power feed |
rotary worktable |
