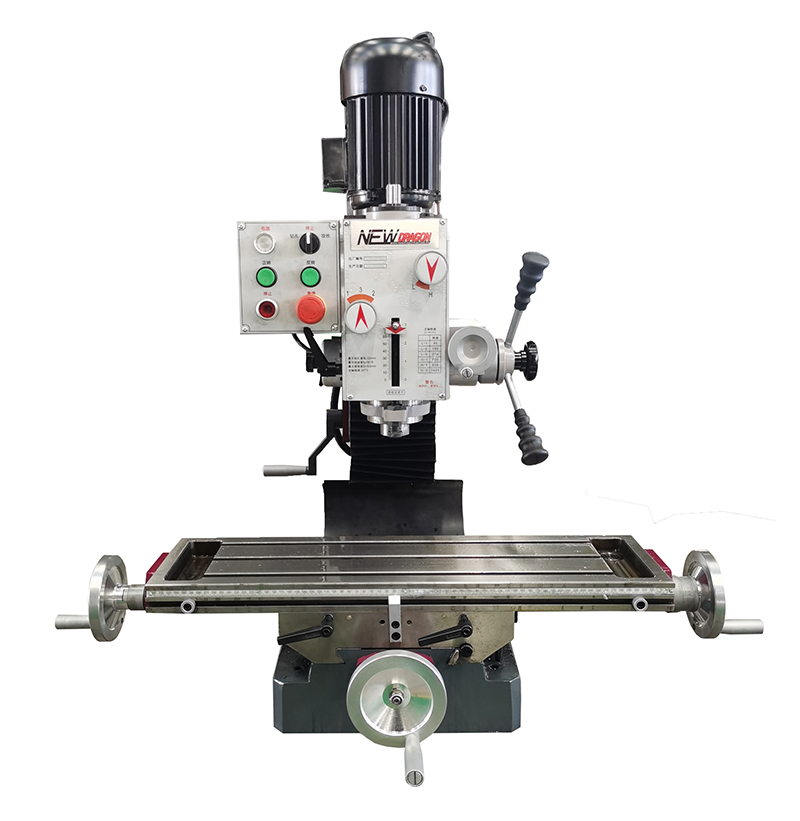

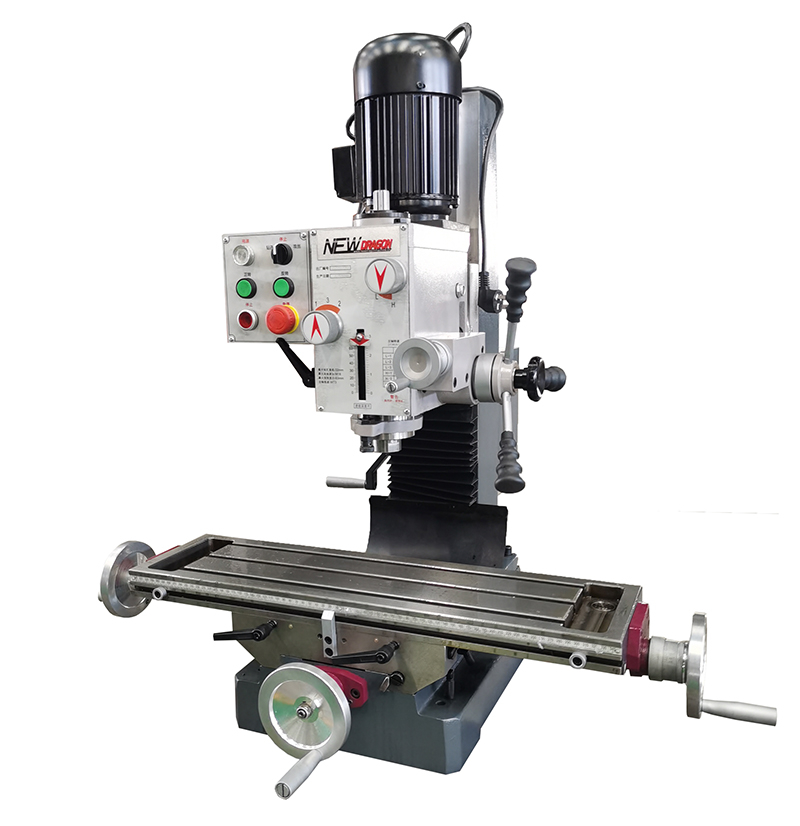

ZX32G vertical drilling and milling machine
Features:
High precision grinding all steel spindle
Specification
|
Model No. |
ZX32G |
|
Max drilling Capacity |
32mm |
|
Max Tapping Capacity |
M16 |
|
Max face Milling Capacity |
63mm |
|
Table Size |
700×190mm |
|
Spindle Taper |
MT3/R8 |
|
Cross Travel |
230mm |
|
Longitudinal Travel |
380mm |
|
Vertical Travel |
350mm |
|
Spindle Stroke |
75mm |
|
T Slot Size |
12mm |
|
Spindle Speed |
95-1420RPM |
|
Headstock Tilt Left and Right |
±90° |
|
Stand Size |
542×340mm |
|
Distance From Spindle to Column |
214mm |
|
Max Distance From Spindle to Table |
400mm |
|
Min Distance From Spindle to Table |
50mm |
|
Power |
220V/380V-750W |
|
Weight(n.e/g.w) |
170/200KG |
Standard accessories
|
1 |
Double-head wrench 22mm×24mm |
|
2 |
Allen wrench 5mm,6mm |
|
3 |
Screw driver(-) 150mm |
|
4 |
Drill stock |
|
5 |
Drill chuck |
|
6 |
Wedge |
Optional accessories:
|
1 |
QH80 machine vice |
|
2 |
58pcs tool clamping kit M12 |
|
3 |
DRO 3 axis |
|
4 |
HSS end mills 2-12mm 8PCS |
|
5 |
Auto feeder for table |
|
6 |
Milling chuck set ER25 8pcs |
|
7 |
stand and oil tray |
|
8 |
HSS end mills 3-20mm coated 20pcs |
