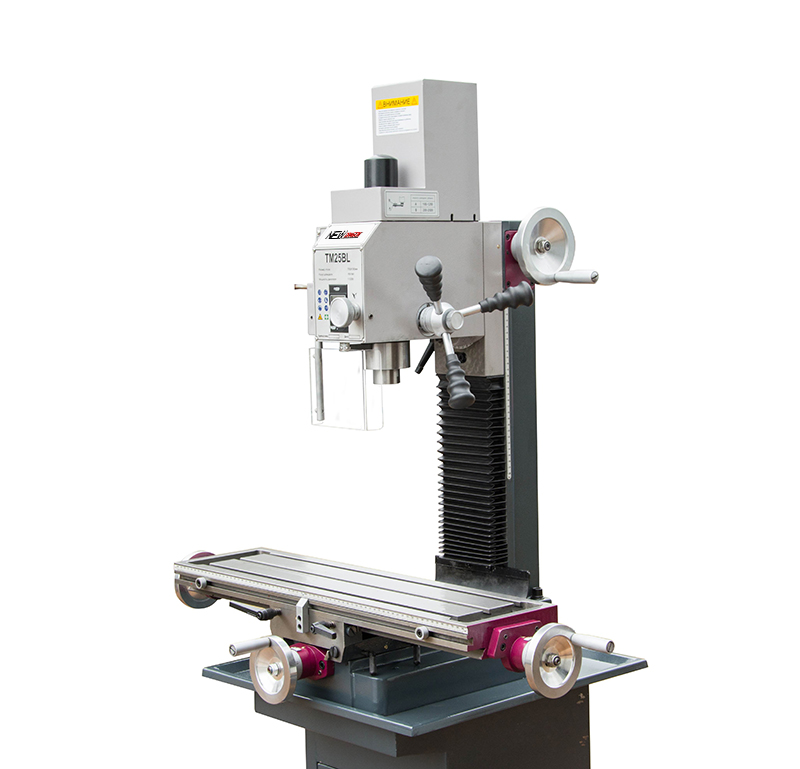

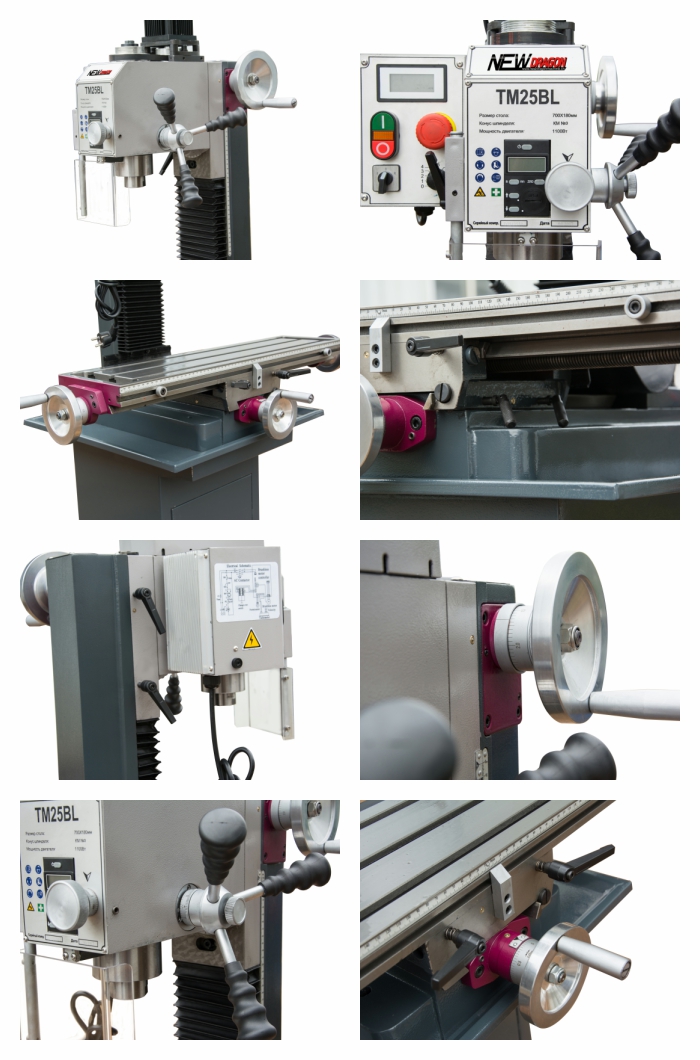

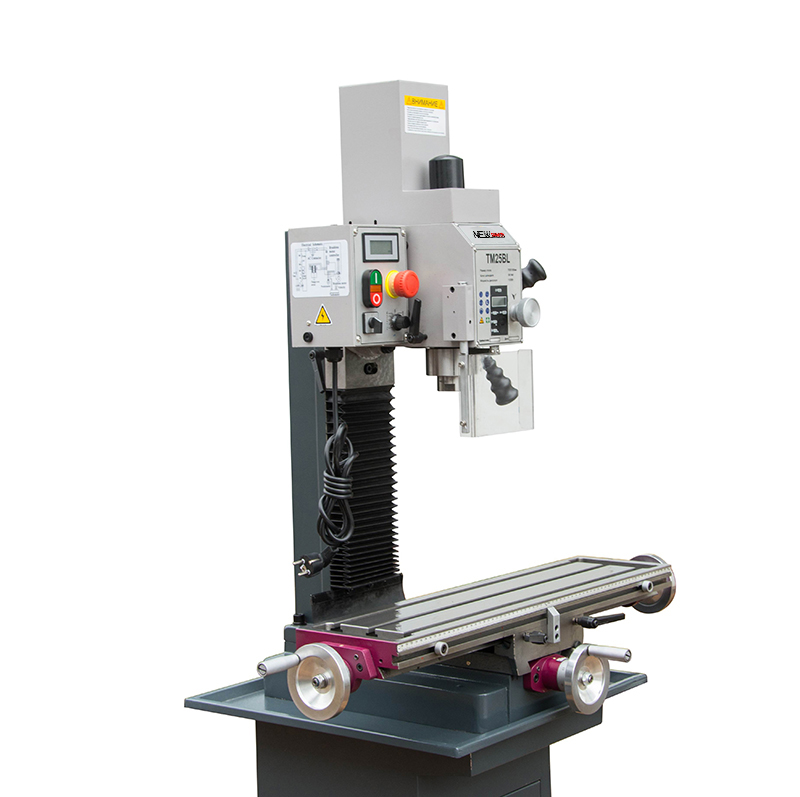

Wholesale Variable Speed Mini Milling Machine Manual Milling Machine for Sale
Technical data
|
Model |
TM25BL |
|
Max. drilling capacity |
25mm |
|
Max.face milling capacity |
63mm |
|
Max.tapping capacity |
M16 |
|
Table size |
700*180mm |
|
Table travel |
520*190mm |
|
T-slot |
3*12mm |
|
Spindle taper |
MT3/R8/ISO20 |
|
Spindle stroke |
50mm |
|
Spindle incline angle |
±90° |
|
Steps of spindle speeds |
Variable |
|
Distance from spindle to column |
201mm |
|
Distance from spindle nose to table |
50mm |
|
Motor |
750W |
|
Packing size |
870X550X860mm |
|
weight |
120/125kg |
Standard accessories
| speed display |
| depth ruler |
| key type drill chuck with arbor |
| tool box |
| wrenches |
| oil gun |
| draw bar |
Optional accessories
| stand and oil tray |
| DRO 3 axis |
| auto feeder for table |
| HSS end mills 2-12mm 8PCS |
| Tool clamping kits 58pcs |
| machine vice 80mm |
| millig chuck set ER25 8pcs |
| HSS end mills 3-20mm coated 20pcs |
