Model |

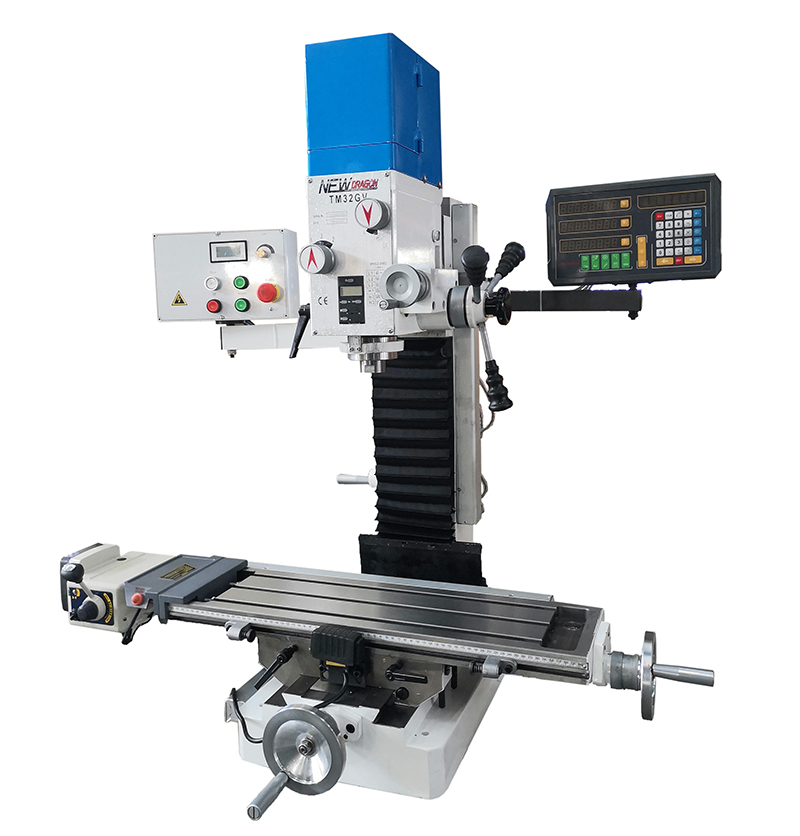

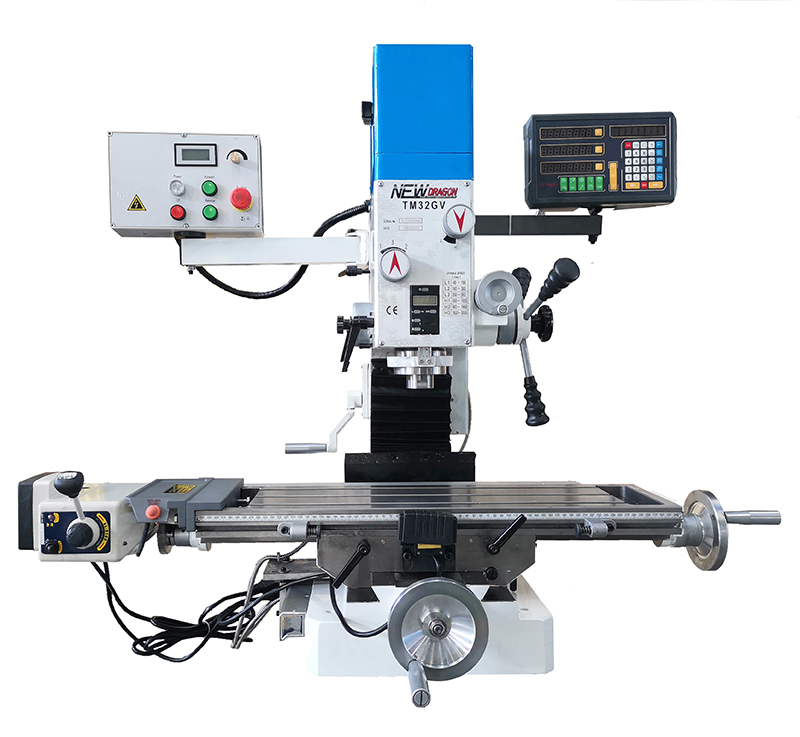

TM32GV |
|||
|
Max. Drilling capacity |
32mm |
|||
|
Max. Face milling capacity |
63mm |
|||
|
Max. End milling capacity |
20mm |
|||
|
Max. tapping capacity |
M16 |
|||
|
Swivel angle of head-stock at perpendicular direction |
±90° |
|||
|
travel Spindle |
75mm |
|||
|
Max. Distance between spindle nose and table |
50-400mm |
|||
|
Distance between spindle axis and surface of square column |
214mm |
|||
|
Spindle taper |
MT3/R8 |
|||
|
Spindle speed
|
L1 |
40-190 |
H1 |
550-1000 |
|
L2 |
180-360 |
H2 |
980-1860 |
|
|
L3 |
350-560 |
H3 |
1800-3000 |
|
|
T-solt |
3x12mm |
|||
|
Y axis travel of table |
220mm |
|||
|
X axis travel of table |
380mm |
|||
|
Z axis travel |
350mm |
|||
|
Table size |
700mm×190mm |
|||
|
Motor |
1100W,3000r/min |
|||
| Weight | 220/260kg | |||
| Packing size | 74X72X108CM | |||
Standard accessories
|
1 |
Double-head wrench 22mm×24mm |
|
2 |
Allen wrench 5mm,6mm |
|
3 |
Screw driver(-) 150mm |
|
4 |
Drill stock |
|
5 |
Drill chuck |
|
6 |
Wedge |
Optional accessories:
|
1 |
QH80 machine vice |
|
2 |
58pcs tool clamping kit M12 |
|
3 |
DRO 3 axis |
|
4 |
HSS end mills 2-12mm 8PCS |
|
5 |
Auto feeder for table |
|
6 |
Milling chuck set ER25 8pcs |
|
7 |
stand and oil tray |
|
8 |
HSS end mills 3-20mm coated 20pcs |
