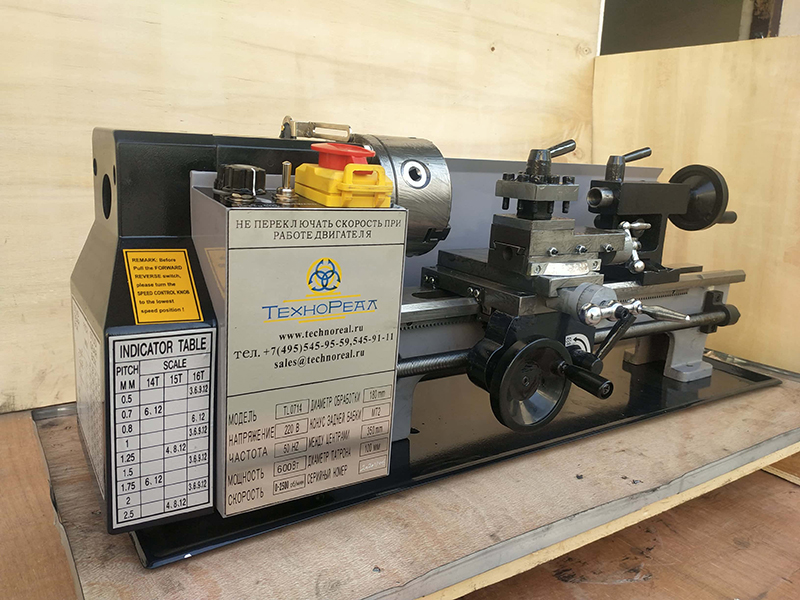

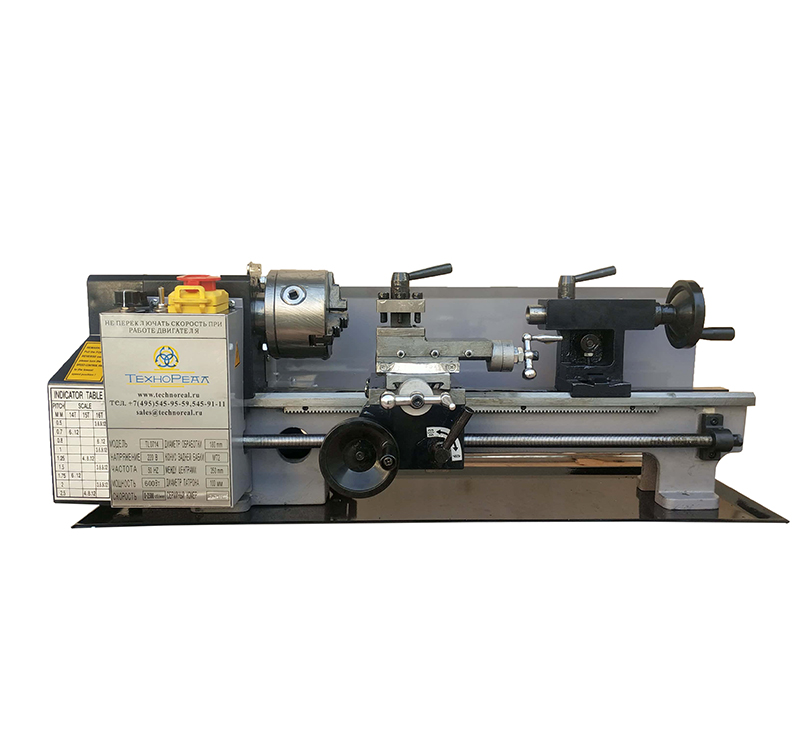

NEW TYPE variable speed Metal bench lathe TL0714A
Feature
Big spindle bore 32mm
With burshless motor 600W
100mm 3-jaw chuck
All metal gears
Technical data
|
Model No. |
TL0714A |
|
Distance between centers |
200/300/350mm |
|
Swing over bed |
180mm |
|
Swing over cross slide |
110mm |
|
Spindle taper |
MT3 |
|
Tailstock taper |
MT2 |
|
Chuck diameter |
80mm |
|
Spindle bore |
32mm |
|
Cross slide travel |
65mm |
|
Tool slide travel |
35mm |
|
Range of metric threads |
0.5-2.5mm |
|
Range of imperial threads |
12-52TP1 |
|
Spindle accuracy |
0.01mm |
|
Spindle speed |
50-2500/100-2500RPM |
|
Power of motor |
600W |
|
Voltage/Frequency |
230V/50Hz or 20V/60HZ |
|
Net weight |
35kg/38kg/40kg |
|
Gross weight |
38kg/42kg/45kg |
|
Packing size |
600/760/810×310×320mm |
Standard accessories
3-jaw chuck 80mm
Change gears
Centers MT2
Oil gun
Set of wrench
Optional accessories
4-jaw chuck 100mm
Follow rest
Steady rest
Face plate 125mm
Stand
Lathe tool
Live center
Speed display
All steel gears
100mm chuck
