Specifications

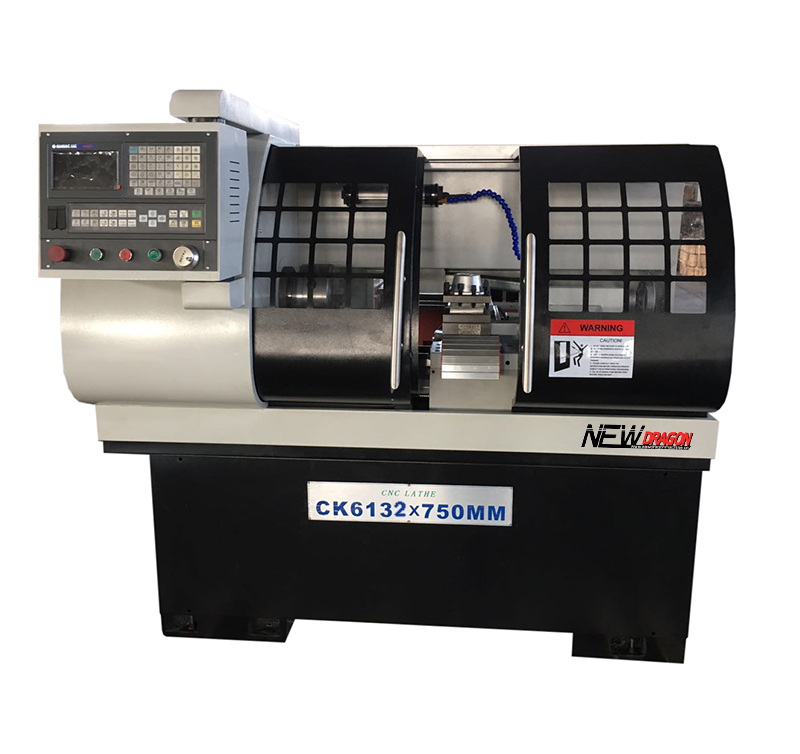

CK6132

Machining capacity

Max.swing over bed

360mm

Max.swing over cross slide

150mm

Max.length of workpiece

750/1000/1500mm

Width of bed

206mm

Spindle

Spindle speed range

150-2500rpm

spindle bore

40mm

spindle nose

A2-5

Taper of spindle bore

MT5

Chuck diameter

1600mm

Slide stroke

X-axis travel

180mm

Z-axis travel

750/1000/1500mm

X-axis rapid moving

6m/min

z-axis rapid moving

8m/min

Turret

Tool station number

4 or 6

Max.section of tool

20x20mm, 16x16mm

Tailstock sleeve

External diameter

32mm

Max.travel

100mm

Taper of bore

MT3

Motor

Main motor power

2.2KW

Coolant pump power

120W

Machine dimension

Overall dimension

1700/2000/2200x1150x1600mm

Packing size

1805/2120/2324x1315x1930mm

Net weight

800/900/1050kg

Gross weight

950/1100/1300kg
