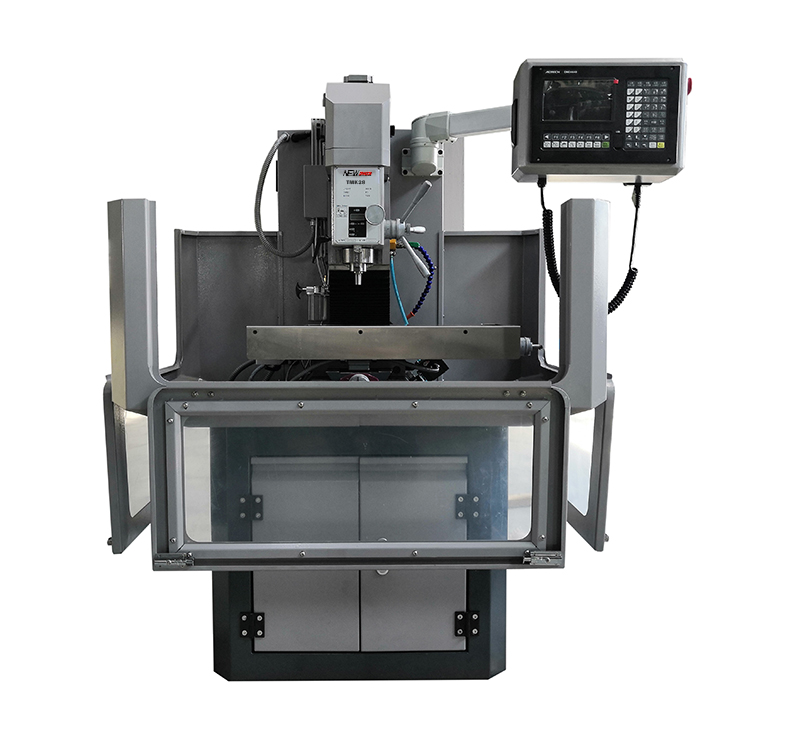

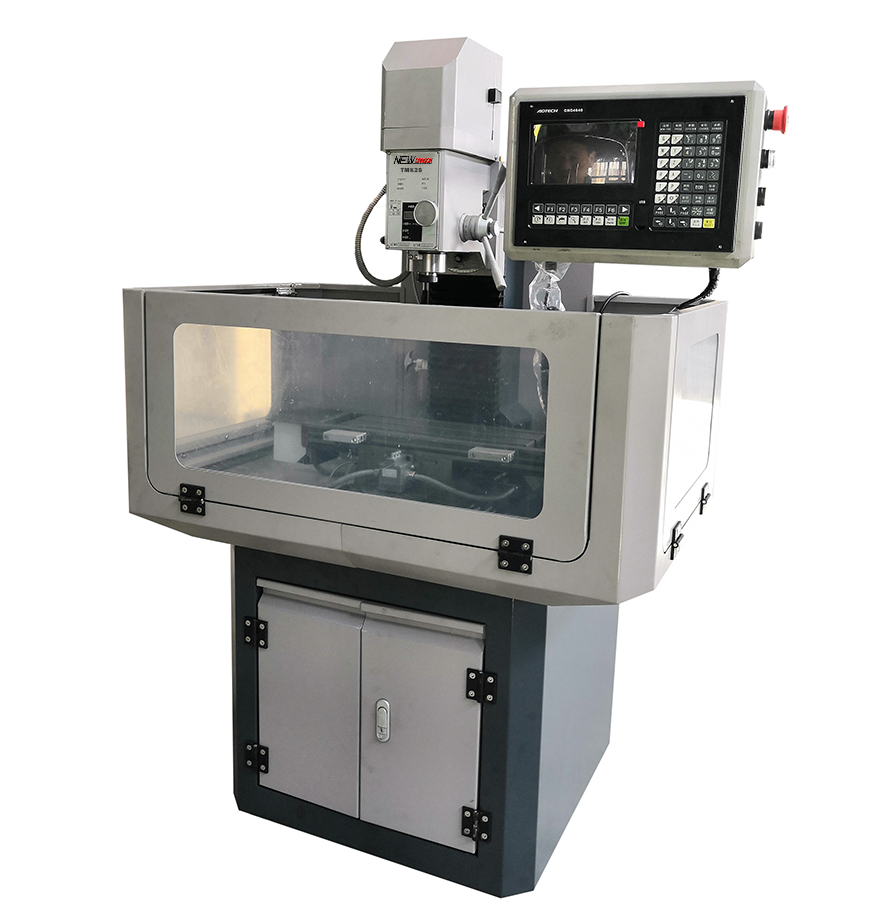

Mini industrial CNC milling machine for cutting metal
Model TMK28 CNC
Control system, MACH3, Adtech
High rigidity, high precision, high effeciency , strong cutting.
Specifications
|
Max.drilling capacity |
28mm |
|
Spindle taper |
MT3 |
|
T slot |
12mm |
|
Face milling capacity |
63mm |
|
Tapping capacity |
M16 |
|
Spindle travel |
70mm |
|
Motor power |
brushless motor 1.1KW |
|
Worktable size |
540X180mm |
|
X/Y travel |
325/200mm |
|
Position accuracy |
0.01mm |
|
RepeatPositioning accuracy |
0.01mm |
|
Distance between spindle axis to column |
50-340mm |
|
Dimension of machine |
720X650X840mm |
