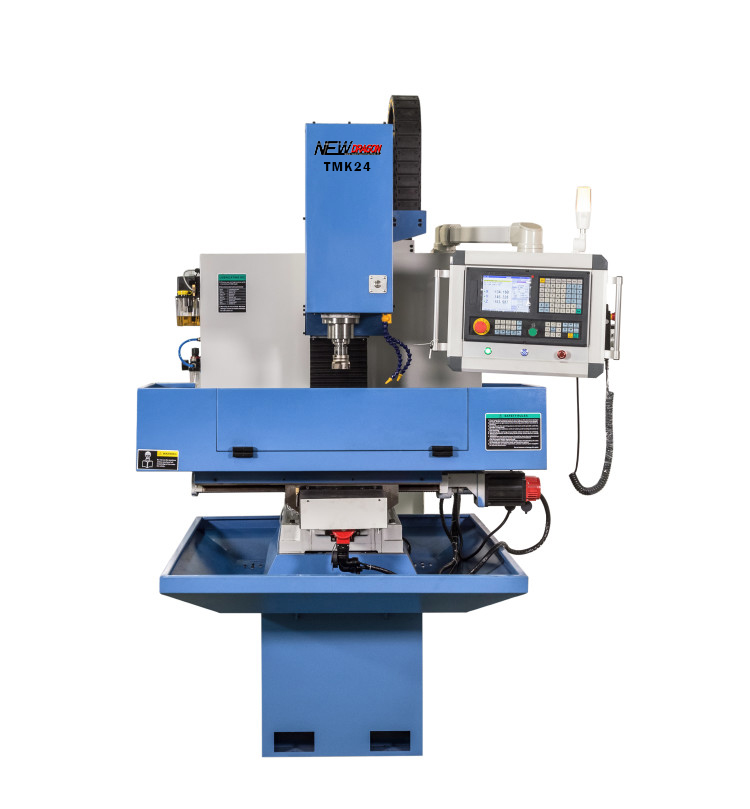

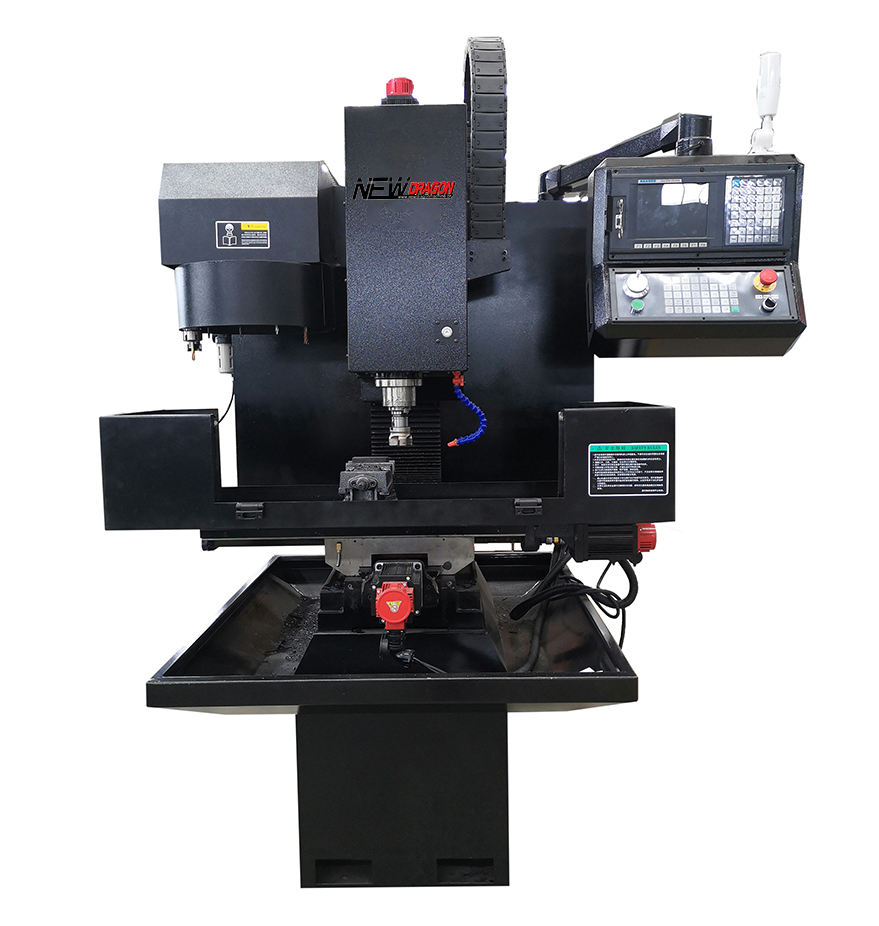

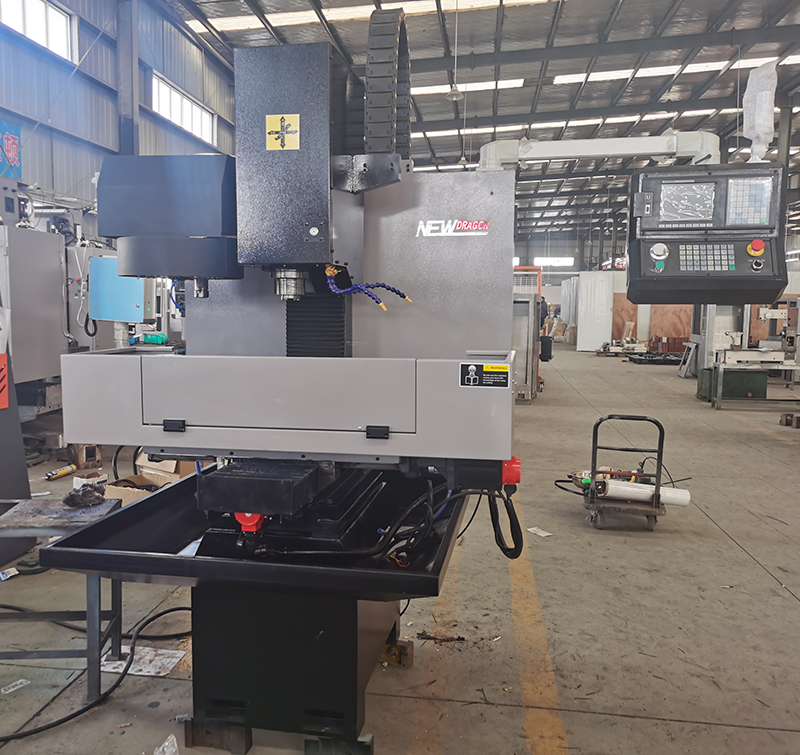

TMK24
Small vertical CNC milling machine with CE
FUNCTION: drilling,tapping,chamfering ,bearing ,milling face thread,handle and tower
High efficiency for automatic cutting tool changing.
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
|
Specification |
TMK24 |
| Table size |
800*240mm |
|
X-axis travel |
425mm |
| Y-axis travel |
245mm |
|
Z-axis travel |
530mm |
|
Ballscrew pitch |
x:2010;Y:2510,C7 class |
| XYZ axis motor |
sevro motor |
|
Main motor |
3.7KW sevro motor |
|
Spindle speed |
6000rpm |
| Spindle taper | BT30 |
|
Positioning accuracy |
0.02mm |
| Repositioning accuracy |
0.02mm |
|
weight |
700kg |
