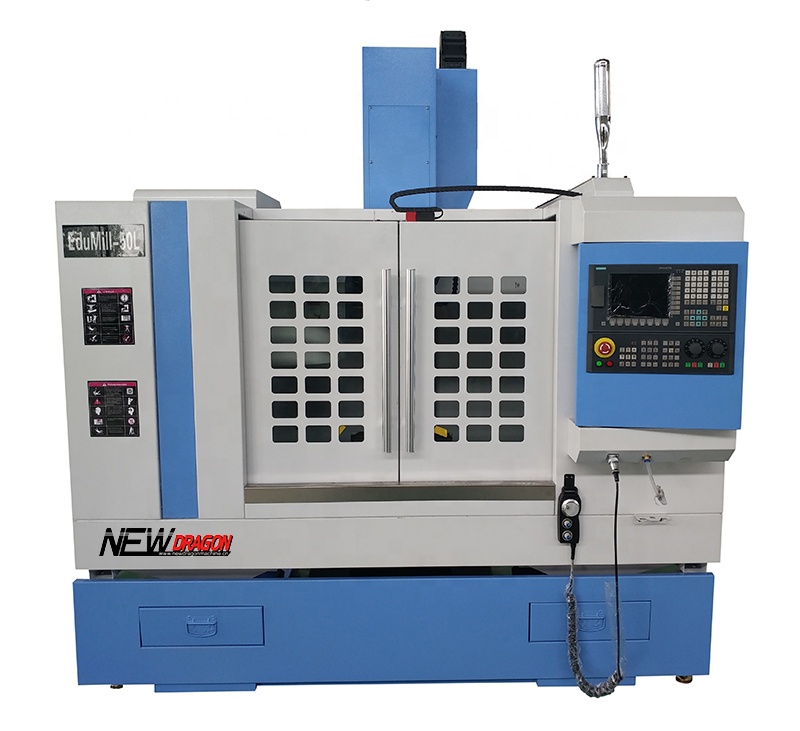

Model

VMC550L

System

SIEMENS808D

Max. Speed of Spindle

8000rpm

Spindle Motor

3.7KW

Z-axis Motor Torque

10N.m

X-axis Motor Torque

6N.m

Y-axis Motor Torque

6N.m

Spindle Taper

BT40

Worktable Size

1000X260mm

Travel(Longitudinal X* Horizontal Y* Vertical Z)

550X320X400mm

Distance between spindle axis to guideway surface

380mm

Distance between spindle end to worktable

80-480mm

The vertical permissible error for spindle axis to worktable plane

≤0.01mm

Positioning Accuracy

0.01mm

Repeat positioning accuracy

0.01mm

cutting speed

0-5000mm/min

Fast moving speed

X/Y10m/min Z:8m/min

Tool magazine capability

BT40-T12qty

Max.dimension of tool

92mm

Max.weight of tool

6kg

Overall Dimension(L×W×H)

2100x1700x2100

Net Weight

1800kg
