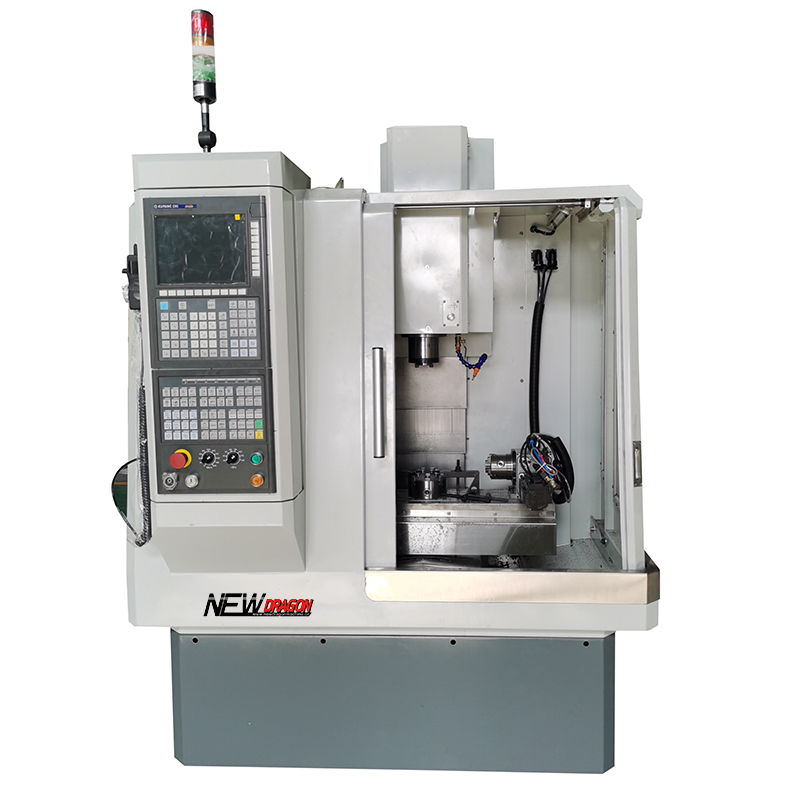

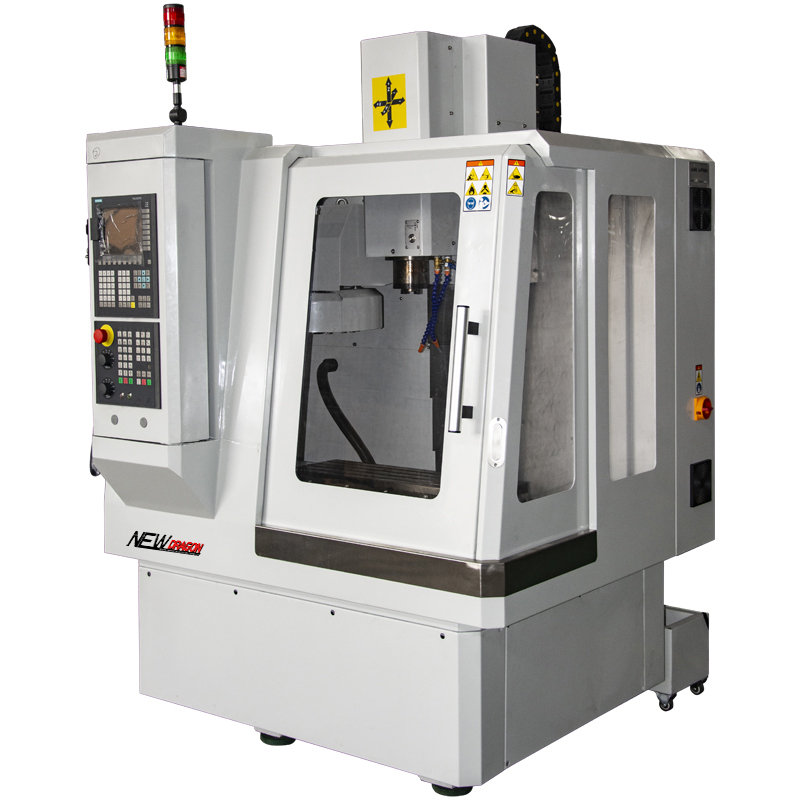

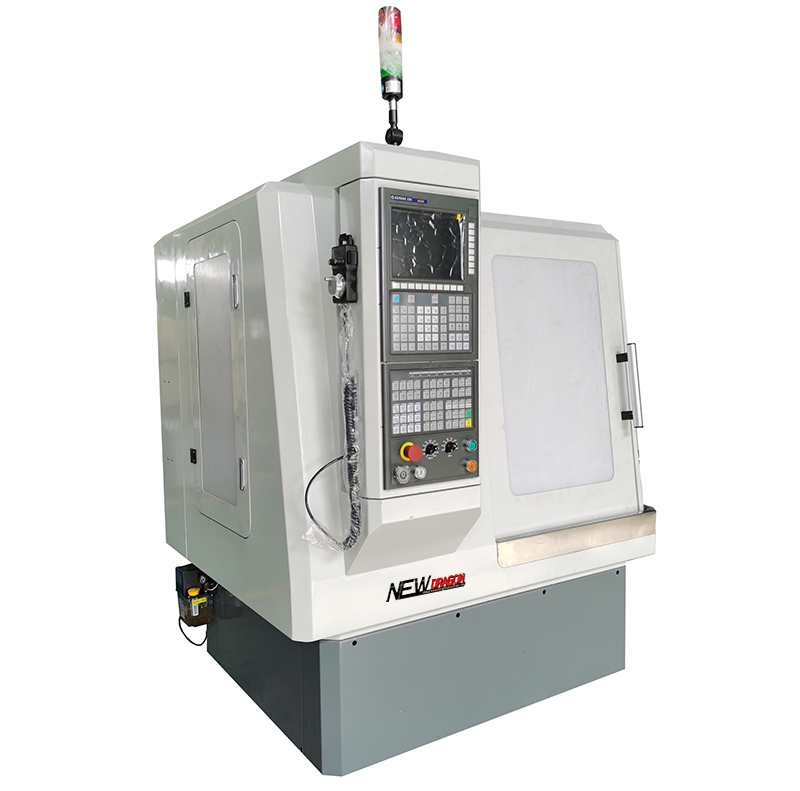

XH7121 cnc vertical machine center/ liner guide rail CNC milling machine
It is used for school , science innovation center and science researching institution teaching demonstration
It is suitable for home use DIY, airplane model accessories and clocks & watches accessories processing.
It can process Ti, stainless steel, 45 steel, iron, aluminium, copper------all kinds of nonferrous metal and wood, nylon-----all kinds of soft materials.
|
Model |
XH7121 |
|
Work table size |
710*210mm |
|
Max loading |
200kg |
|
T st |
14*4*63mm |
|
X/Y/Z( Ball screw) |
Φ25*pitch-5mm P3 |
|
x/y/Z( W*T) |
28*26mm |
|
X-axis |
360mm |
|
Y-axis |
260mm |
|
Z-axis |
450mm |
|
Distance from spindle nose to table |
70-520mm |
|
Distance from spindle center to column |
270mm |
|
Spindle speed |
8000rpm |
|
Tool holder type |
BT30 |
|
Tool clamping way |
Pneumatically |
|
ATC capacity |
8pcs |
|
Cutting feed speed |
0-2000mm |
|
Rapid speed |
15000mm |
|
Positioning accuracy |
0.025mm |
|
Repeatability accuracy |
0.015mm |
|
Main spindle motor(servo) |
2.2/3.7KW-14/23.7NM |
|
x/y/Z motor(servo) |
1.8KW/6NM |
|
N.W. |
1200/1300KG |
|
Dimension |
1480*1400*2060mm |
|
Packing size |
1660*1500*2000mm |
