Features:
Integrated stand casting more stronger
The Surface of the bedways is supersonic frequency hardened and precision grinding.
The linear and ball screw amde in Taiwan.

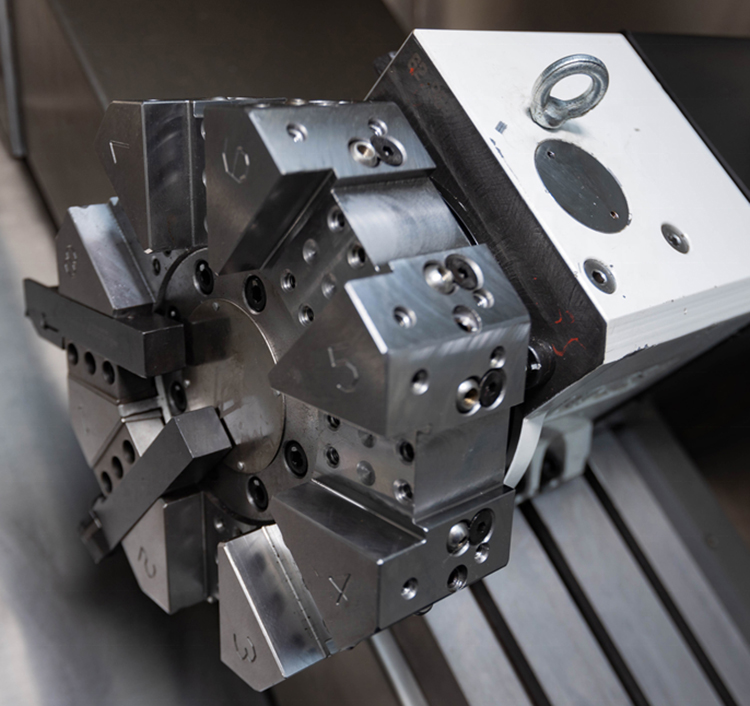

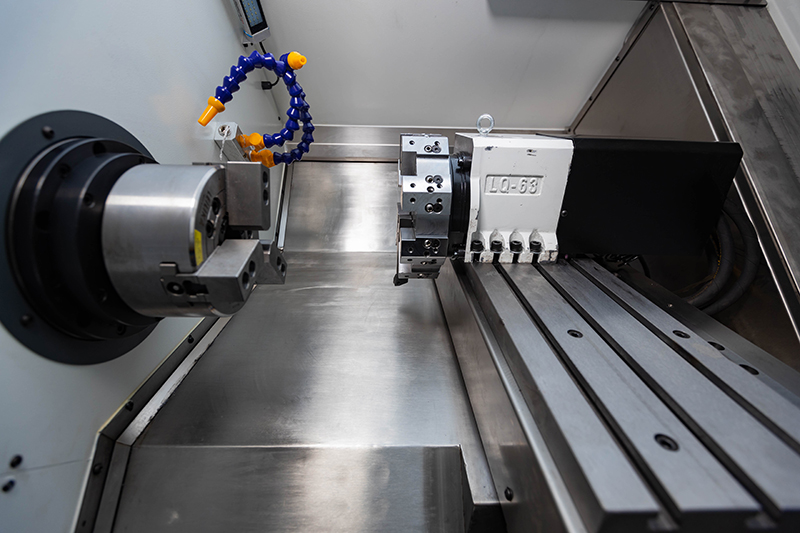

Collect and hydraulic chuck,gang tools, 4 electric turret and hydraulic turret can be chosen.
|
Model |
TK35 |
|
Max. swing over bed |
400mm |
|
Max. swing over cross slide |
126mm |
|
Max.turning length |
350mm |
|
Spindle hole |
48mm |
|
Spindle nose |
ISO-A2-5 |
|
Spindle speed |
200-3000rpm |
|
Spindle speed steps |
Variable |
|
Chuck size |
160mm |
|
X/Z axis rapid travel speed |
24000/24000mm/min |
|
X/Z axis cutting travel speed |
1-24000mm/min |
|
X/Z axis servo motor torque |
4/6 NM |
|
Max. travel of cross slide |
400mm |
|
Number of tool post |
Gang tools |
|
Max. size of toolshank |
20*20mm |
|
Positioning accuracy |
0.005mm |
|
Repeat positioning accuracy |
0.003mm |
|
The min.unit set |
0.001mm |
|
Dia.of tailstock sleeve |
/ |
|
Taper of tailstock sleeve |
/ |
|
Max. travel of tailstock |
/ |
|
Main drive motor |
5.5/7.5KW |
|
Coolant pump motor |
0.12KW |
|
Overall dimendion |
1920*1550*1700mm |
|
N.W. |
1500kg |
