Products > TL210H(CNC210) MINI CNC LATHE MACHINE FOR EDUCATION

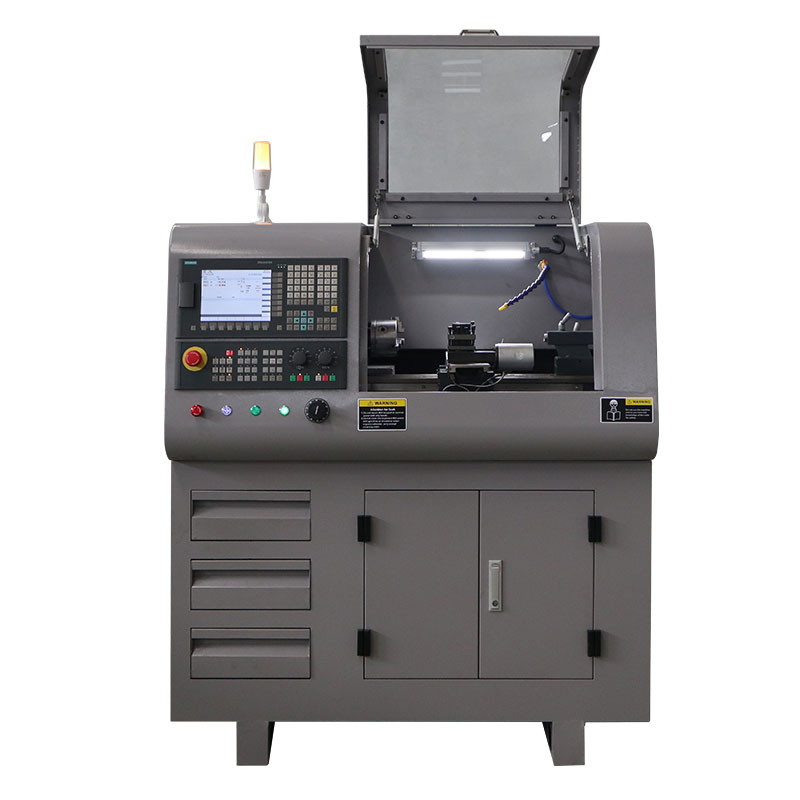

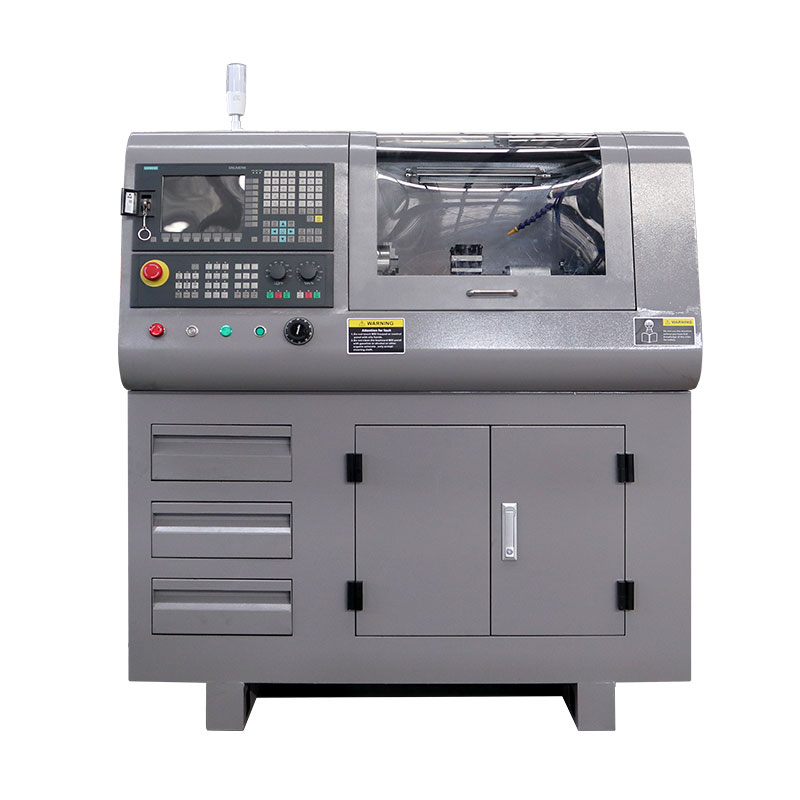

TL210H(CNC210) MINI CNC LATHE MACHINE FOR EDUCATION

TL210H CNC lathe machine CNC210

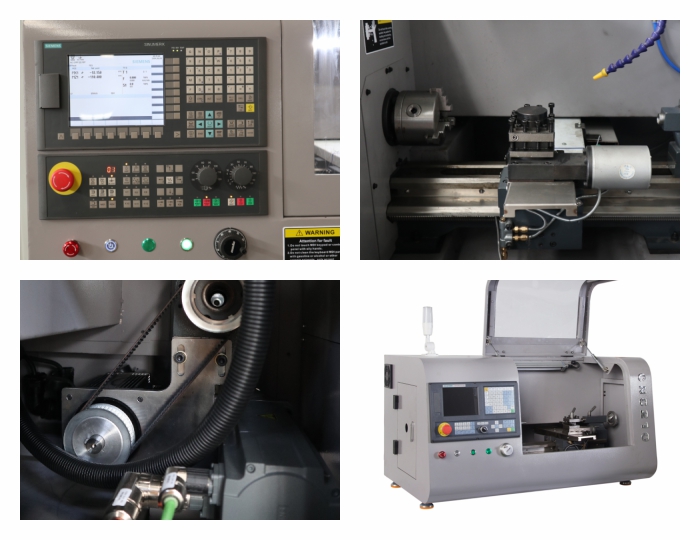

1.The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.
2.DC brushless spindle motor
3.Small occuping,lower energy consumption,easy operation,suitable for small processing
4,High-quality spindle by high-precision grinding and support by Angular contact bearin
5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.




Specification
CNC210
Max swing over bed
210mm
Max.swing over carriage
100mm
Max.length of work pieces
250mm
Spindle bore
26mm
Spindle taper
MT4
Spindle speed
100-3000rpm
Metric thread cutting
0.25-4mm
Inch thread cutting
6-80TPI
Electric toolpost
4-position
Gangtool bar size
12mm
X Travel
90mm
Z travel
300mm
X Moving speed
2000mm/min
Z Moving speed
2000mm/min
Spindle motor power
1.2kw
X Motor power
2NM
Z Motor power
2NM
Mini setting unit
0.001mm
Tailstock diameter
22mm
Tailstock Travel
50mm
Tailstock taper
MT2
Overall size
1185X930X1440mm
Net weight
300kgs
