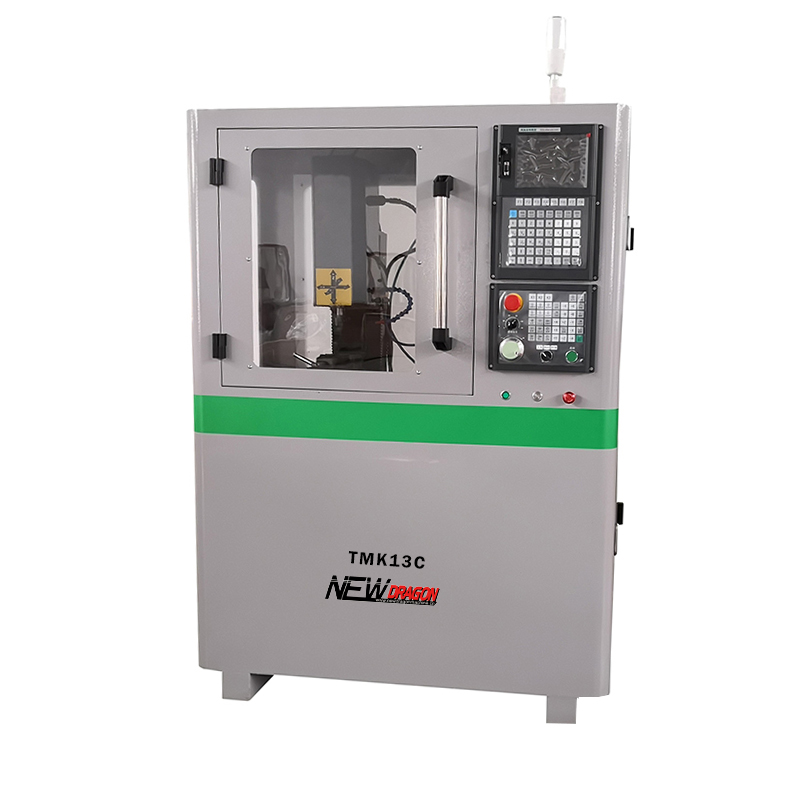

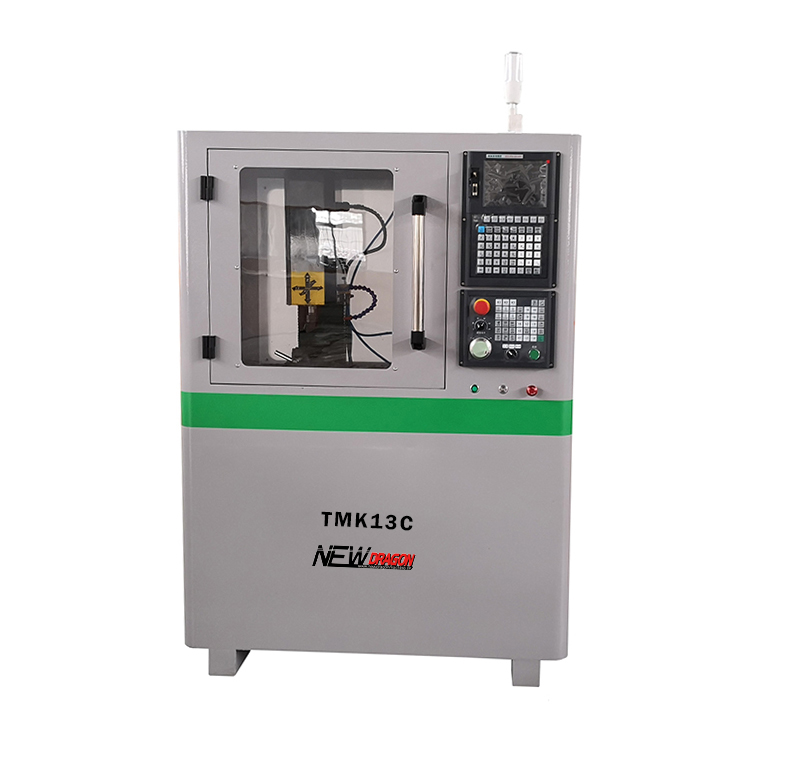

TM13C mini milling machine with servo motor
Feature
Mini hobby CNC milling machine with servo spindle motor.
Designed for hobby ,household and factory use.
Rigid tapping avaibable.
Specification
| X-axis travel | 200mm |
| Y-axis travel | 120mm |
| Z axis travel | 200mm |
| Drilling capacity | 20mm |
| T-slot | 3/12/40mm |
| working desk size | 400mm*140mm |
| spindle speed | 0-3000rpm Alfa control |
| spindle motor | 1KW servo motor |
| spindle | ER25 |
| spindle center to column distance | 194mm |
| spindle nose to table diatance | 215mm |
| Machine size | 1100*600*1380mm |
| N.W./G.W. |
170/200kgs |
